Home > Products > Product Showcase > TK6813 cost of horizontal boring machine

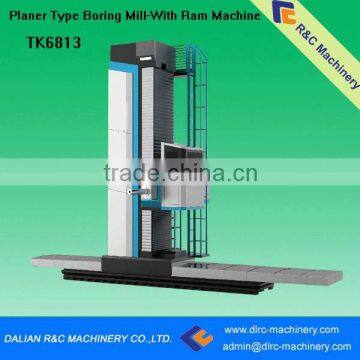

TK6813 cost of horizontal boring machine
- DALIAN
- T/T
You May Like
-
VM1060 cheap cnc vertical machine center china
-
VM1060 3 axis Chinese cnc vertical machining center
-
VM1060 3 axis new cnc large vertical machine center
-
VM1060 smart fanuc cnc china 3 axis vertical machine center
-
VM1060 siemens system hard way cnc vertical machine center
-
VM1060 china made hot sale cnc vertical milling machine center with price
Product Details
| Condition | New | CNC or Not | CNC | |
| Production Capacity | 10 | Place of Origin | Liaoning, China | |
| Brand Name | R&C | Model Number | TK6813 | |
| Voltage | 380V | Power(W) | 22/33(kW) | |
| Dimension(L*W*H) | 2000*2000mm TABLE SIZE | Weight | 50-80T | |
| Certification | CE ISO BV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
TK6813 cost of horizontal boring machine
IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
|
| IMAGES>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
Specification | TK6813 | TK6816 |
Spindle diameter | 130mm | 160mm |
Spindle taper | ISO50 | ISO50 |
Max. spindle speed | 2000r/min | 2-1500r/min |
Motor power | 22/33(kW) | 30/37(kW) |
Ram size | 380mm*380mm | 480mm*520mm |
Table size | 2000*2000mm | 2500*2000mm |
Table loading capacity | 10-40ton | 10-40ton |
Max. spindle torque | 3500Nm | 3500Nm |
Max. spindle thrust | 25000N | 25000N |
Cross travel of table(X axis) | 2000-7000mm | 2000-7000mm |
Vertical travel of spindle head (Y axis) | 1500-4000mm | 1500-4000mm |
Longitude travel of column(W axis) | 1500mm | 1500mm |
Axial travel of ram(V axis) | 800mm | 800mm |
Axial travel of boring spindle (Z axis) | 800mm | 800mm |
Table rotary indexing (B axis) | 360*(random) | 360*(random) |
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
|
|
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>>R&C |
|
IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES> PACKING>> R&C |
|
|
COMPANY PROFILE. |
|
CERTIFICATION. |
|
|
PLEASE CLICK THE HOME BUTTON TO BACK THE HOMEPAGE.
