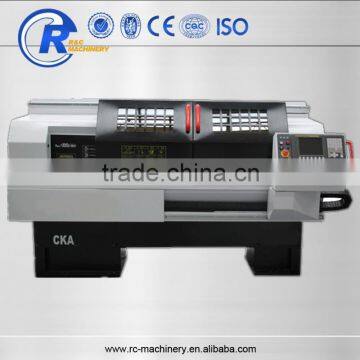

CK6150i New Cnc Lathe Machine Metal Cutting Lathe For Sale

FOB Price

US$ 10,000 - 200,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, flat bed
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	500mm	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	CK6150i
Voltage	380V	Power(W)	11KW
Dimension(LWH)	383017501620mm	Weight	2550 kg
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

CK6150i New Cnc Lathe Machine Metal Cutting Lathe For Sale

Product Description

Main Specification

Item	mm	CKE6140i	CKE6150Z	CKE6150i
Max. swing over bed	mm	400	500	500
Width of bed	mm	300	400	400
Max. length of work piece	mm	750/1000	750/1000/1500/2000	750/1000
Max. swing over slide	mm	200	280	280
X travel	mm	225	280	280
Z travel	mm	620/870	680/930/1430/1930	680/930
Spindle nose	mm	A2-5	D8	A2-8
Chuck size	mm	165	250	250
Taper of spindle bore	mm	M5	1:20	1:20
Spindle bore	mm	40	82	82
Spindle speed Frequency conversion motor	r/min	200-3500	7-135
			30-550
			110-2200

Steps of spindle speed		stepless	stepless	stepless
Frequency conversion motor power	kw	5.5	7.5
Rapid traverse X/Z	m/min	4/5	6/10	6/10
Repeatability of tool post	mm	0.008	0.008	0.008
Diameter of tailstock quill	mm	63	75	75
Travel of tailstock quill	mm	130	150	150
Taper of tailstock quill		M4	M4	M4
Net weight	kg	1800/1953	2500/2600/2700/2800	2550/2600

Main Parts
