CM5116 CNC Turning and Grinding Multi-purpose Lathe Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1600mm	Place of Origin	Liaoning, China
Brand Name	CHANGSHENG	Model Number	CM5116
Power(W)	7kw	Weight	19.5T
Certification	CE&ISO	After-sales Service Provided	Engineers available to service machinery overseas

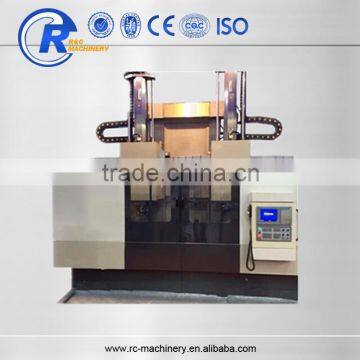

Photos of Machine

Main Parameters

Specification and Data
Items	CM5116		Unit
Maximum turning diameter	1600		mm
Maximum workpiece height	1000		mm
Maximum workpiece weight	5		t
Table diameter	1250mm		mm
Workbench speed Series	Stepless
Table speed range	4~240		r/min
Maximum torque table	7200		N•m
The main motor (servo)	22		KW
Turret parameters
Maximum turret cutting force	40	KN
Vertical turret ram stroke	800mm	mm
Vertical turret fast moving speed	10000	mm/min MPG each grid cutter
Vertical turret feed rate series	Steepless
Feed range of vertical turret	0.1~2000	mm/min
Arbor sectional dimensions	40	mm
Beams travel	1000	mm
Movement speed of the beam	410	mm/min
Motor power of up and down of the beam	5.5	Kw
Machine total weight (approx)	19.5	t
Grinding parameters
Maximum machining diameter	1600		mm
Minimum grinding bore	100		mm
Maximum grinding depth	800		mm
Maximum machining height	1000		mm
Rotation speed	1000-2900		r/min
Wheel diameter range	50-300		mm
Motor Power	7		kw
Wheel spindle taper hole	1:10
Wheel shaft diameter jump	0.003		mm
Wheel shaft jump	0.003		mm
X-axis movement speed	0-6000		mm
Minimum setting unit	0.001
Angle grinder	±30º
Cylindrical grinding degree	0.005/300		mm
Grinding true roundness	< 0.015		mm
Surface grinding accuracy (concave)	0.015		mm
