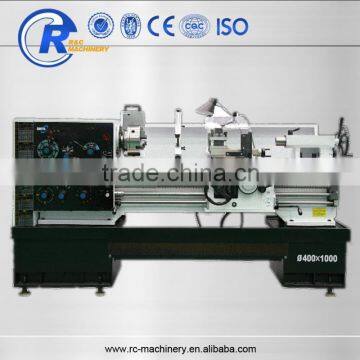

CDE6250A High Precision Conventional Lathe

FOB Price

US$ 7,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	400	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	CDE6250A
Voltage	380V	Power(W)	7.5 KW
Dimension(LWH)	240011981362mm	Weight	3905kg
Certification	ISO9001,CE	After-sales Service Provided	Engineers available to service machinery overseas

CDE6250A High Precision Conventional Lathe

Product Description

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

Item	CDE6140A	CDE6240A	CDE6150A	CDE6250A	CDE6166A	CDE6266A
Max. swing over bed	400mm		500mm		660mm
Max. swing over carriage	220mm		290mm		430mm
Max. swing over gap	700mm		760mm		910mm
Width of guide way	394mm
Dia. of spindle bore	52mm
Taper of center sleeve	Morse No.6
Spindle speed	11-1400rpm/22speeds
Longitudinal feed	0.035-2.842mm/rev
Cross feed	0.009-0.804mm/rev
Metric thread	0.5-240(66)
Module thread	0.25-120(57)mm
Diametrical pitch thread	160-7-16DP(50)mm
Section of tool shank	25×25
Travel of top slide	150mm
Max.travel of cross slide	348mm		348mm		393mm
Pitch of longitudinal leadscrew	12mm
Travel of tailstock center sleeve	150mm
Diameter of tailstock center sleeve	75mm
Taper of tailstock center sleeve	Morse No.5
Main motor power	7.5kW(50Hz)/5.5kW(60Hz)
