HS-680 (new style) computer cutting wire peeling machine
- 80 Set / Sets per Month
- ShenZhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiSheng | |
| Model Number | HS-680 | Usage | Stripping |
Product Description

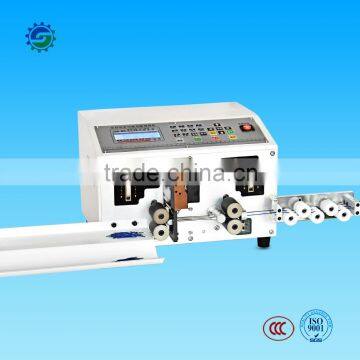

HS-680 (new style) computer cutting wire peeling machine
Introduction:
The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time, fast efficient,Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function once completed, can instantly transform wire specifications and dimensions,it’s very economic. The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
Features:
- Double wires cutting peeling machine, high yield
- Catheter motor drive is power without noise, two times service life higher than conventional.
- Adjust the position of the catheter directly up on the screen.
- The new motherboard upgrade one-third faster than the old
- Feeding wire wheel spindle increased to 12MM, wire feeding stable and durable, not easily deformed.
- LCD display, simple and intuitive
Parameters:
Type | HS--680 |
Size | 470mm×450×340 |
Weight | 40kg |
Display method | Chinese or English interface display |
Power supply | AC220/50Hz |
Capacity | 420W |
Cutting length | 1mm---99999mm |
Cutting Tolerance | Adjustable |
Peeling length | 1.0mm-999.9mm(According to the wire) |
Applicable wire core area | 32 # -12 # (double wires) single-line maximum to 8 |
Productivity | 3500-7000pcs/h(according to the cutting length)output 2wires once |
Tool Material | Tungsten steel / white steel |
Stripping speed | Fast |
Cable outer diameter | Adjustable |
Stripping quality | Excellent |
Decimal precision | Yes |
Drive mode | Four simultaneously drive |
Stripping pressure adjustment: | Adjustable |
Speed adjustment | 0-9 |
Stripping Mode | long wire/ short wire /Multi-stripping / multi stripping |

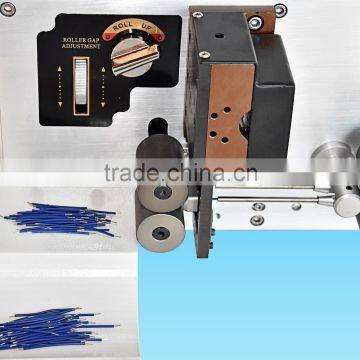

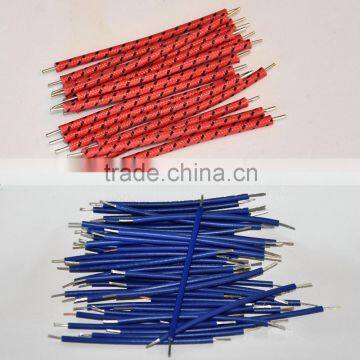

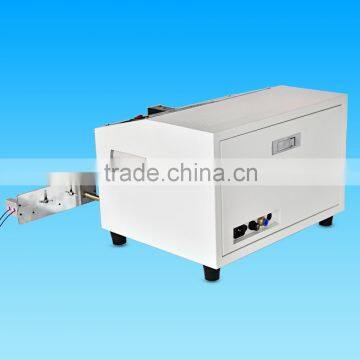

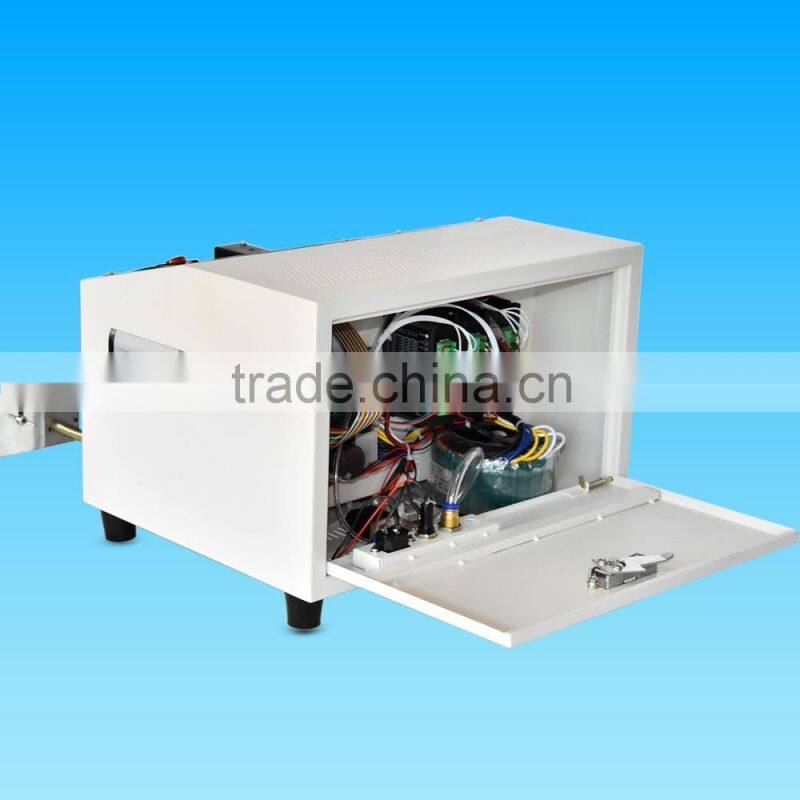

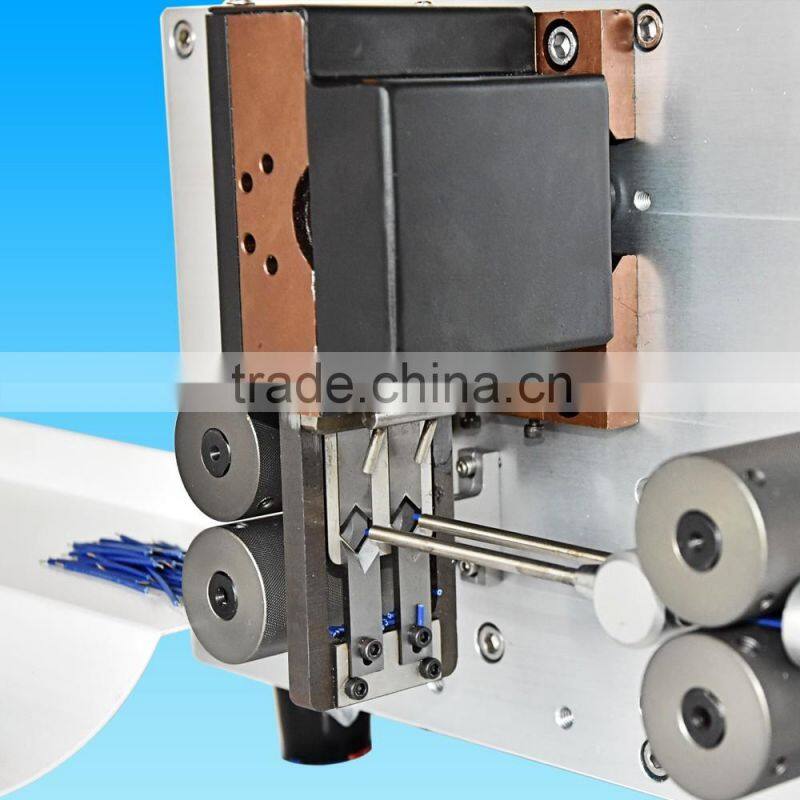

Product Display:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
