Computer Cutting Wire Peeling Bending Machine
- ShenZhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiSheng | |
| Model Number | HS-508ZW | Usage | Other, peeling/bending |
Product Description
Computer cutting wire peeling bending machine
Parameters:
Type | HS-508ZW 16 square |
Size | 420mm×345mm×297mm |
Weight | 31KG |
Display method | 240×128 Blue LCD |
Power supply | AC175V-250≤50/60HZ |
Power | 130W----200W |
Cutting length | 0.1mm---99999.9mm |
Stripping head | 0.1-100mm |
Bend times | 13 times |
Bend length | The last bend length is larger than 50mm |
Bending mode | Clockwise, counterclockwise, adjustable bending degree, 30°, 45°, 60°, 90°. With a fold line can be simultaneously both positive and negative bends |
Cutting Wire diameter | 0.1-16 |
Cutting tolerance | Less than 0.002×Lmm |
Catheter diameter | 1.5mm-----10mm |
Tool material | Imported high-speed steel |
Drive mode | Two wheel |
Bend lines per hour | 400—1000pcs |

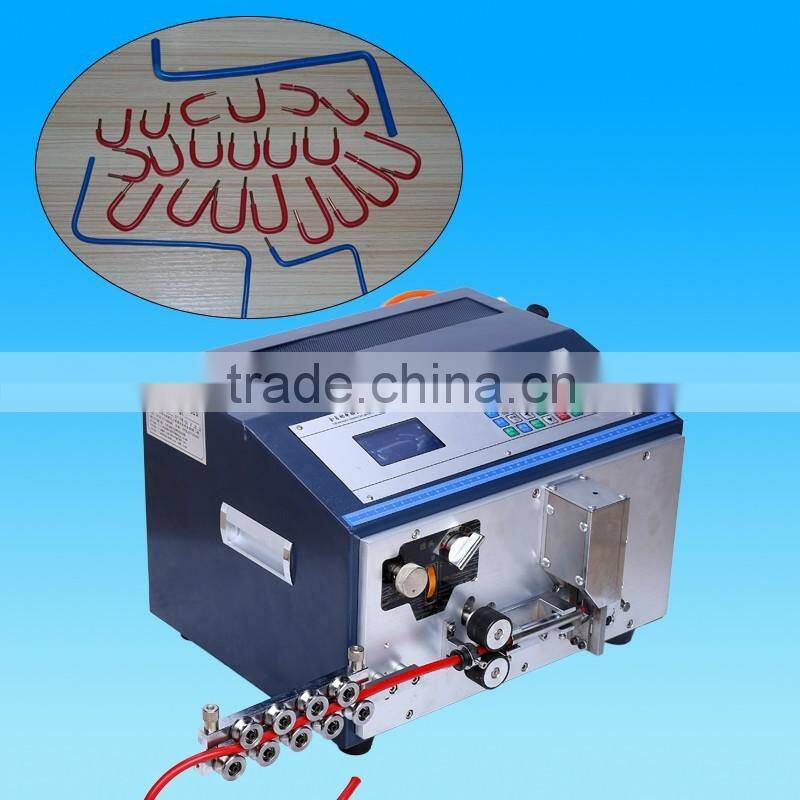

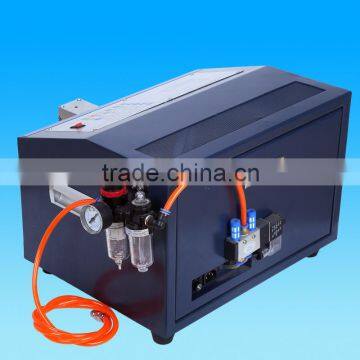

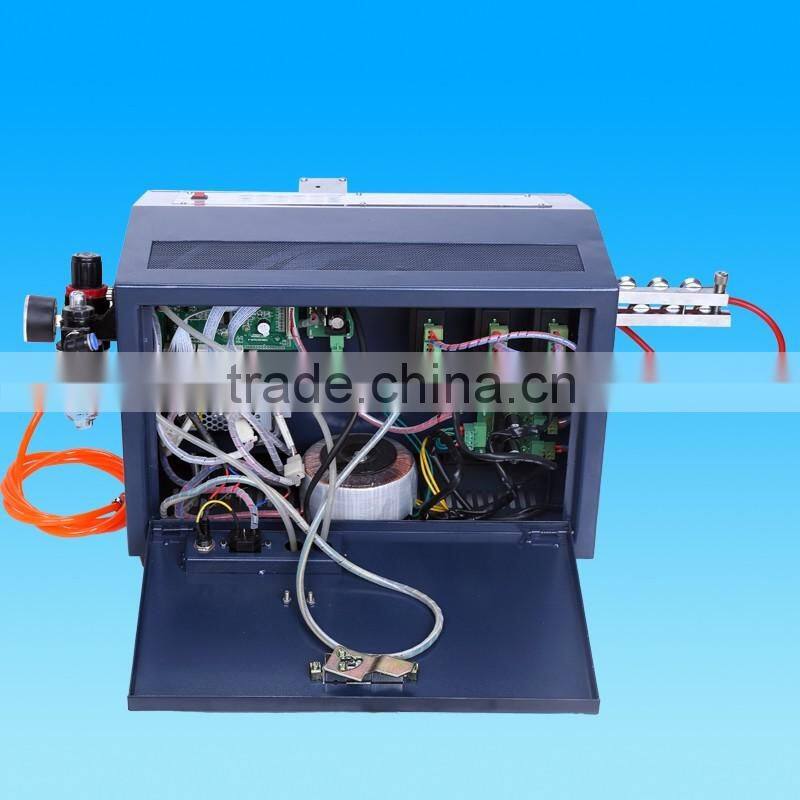

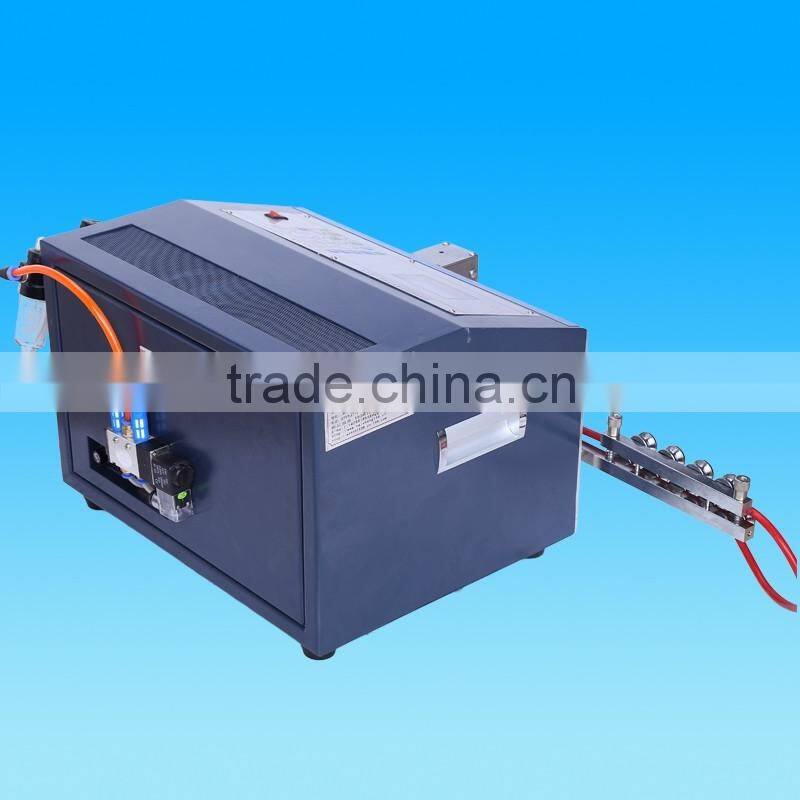

Product Display:
Packing method:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
