Automatic computer cutting wire peeling machine (general four-wheel drive)
- ShenZhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiSheng | |
| Model Number | HS-508S | Usage | Other, cutting/stripping |
Product Description

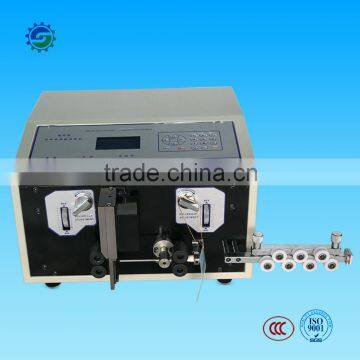

Automatic computer cutting wire peeling machine (general four-wheel drive)
Technical Parameters:
Model | HS-508S |
Power supply | AC 110V/220V/ 50/60Hz |
Dimensions | 390x350x255 |
Display method | Chinese English LCD display interface |
Weight | 32(KG) |
Rated power | 200W |
Cutting length | 1-9999mm |
Cutting tolerance | Less than (0.002×L)mm |
Truncation error | Correctable |
Stripping length | 0-35 thread, wire tail 0-15mm |
Intermediate cutting | Eleven peel |
Cutting core cross section | 0.1-4.5mm2( AWG14#-AWG32#) |
The maximum diameter of the catheter | 7mm |
Suitable stripping wire | PVC / Teflon / silicone cable / glass fiber cables and so on. |
Blade Material | Hard tungsten steel (imported white steel optional) |
Stripper speed (pcs / h) | L = 100mm, 3000-5000pcs / h (high yield) |
Drive method | Four-wheel drive |
Basic accessories:
1. A set of stripping machine
2. Two hex tool.
3. Chinese manual
4. A power cord
5. A pair of blades and four SHCS
6.3 Fuse
7. Linear device
8.4 rubber tire
Product Display:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
