ultrasonic thickness gauge
- 1000 Unit / Units per Month
- beijing tianjin
- T/T Credit Card PayPal
You May Like
-
0.196J Concrete Test Hammer Mortar Strength Testing 1.0 - 25 Mpa
-
2.207J 60Mpa Concrete Test Hammer Schmidt Hammer
-
Easy Operate Digital Concrete Test Hammer , W + Integrated Voice
-
High Precision 0.735J/54 268 mm for Brick Concrete Test Hammer
-
New Model Portal Accuracy Ultrasonic thickness gauge
-
Portal Accuracy Ultrasonic thickness gauge
Product Details
| Place of Origin | Beijing, China | Brand Name | TMTeck | |

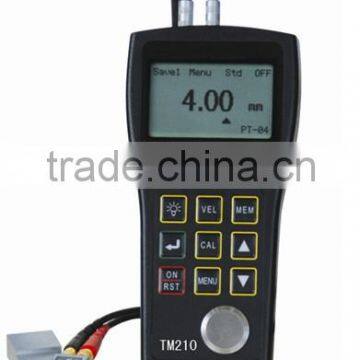

| Model Number | TM200/TM210 |
Product Description
Specifications
1,AUTOMATIC SELF CALIBRATION2,AUTOMATIC POWER OFF DEVICE
3,HIGH-LOW LIMIT ALARM
4,LOW BATTERY INDICTOR
FEATURES:
- AUTOMATIC SELF CALIBRATION
- COUPLANT INDICATOR
- AUTOMATIC POWER OFF DEVICE
- HIGH-LOW LIMIT ALARM
- LCD BRIGHTNESS ADJUST
- LOW BATTERY INDICATOR
TECHNICAL SPECIFICATIONS:
| TM200 | TM210 |
Display Resolution | 0.1mm (or 0.01 inch) | 0.1mm/0.01mm or 0.01 inch /0.001inch |
Accuracy | ±(1%H +0.1)mm | ±(0.5%H + 0.01)mm |
Measuring Range | 0.8 - 300.0 mm depending on the probes (1.0 - 200.0 mm with Standard Probe within the package) | |
Display Frequency | 4Hz | |
Memory | Store up to 500 test values | |
Sound velocity | 1000-9999 m/s (0.0393-0.3936 inch/μs) | |
Display Type | 4 digital LCD with advanced backlight | |
Power Supply | 2 pcs. 1.5v AA standard Batteries | |
Working temperature | -0 ºC ~ +50 ºC | |
Dimension | 149 mm X 73 mm X 32 mm | |
Weight | 168g (main unit); 30g (standard probe) | |
Standard Delivery :
- Main Processor with built-in Calibration block (4.0mm)
- Standard Probe – PT-12 (5 MHz)
- Coupling Paste
- Operation Manual
- Batteries – 2 pcs. 1.5v AA Type batteries
- Carrying case
Probes Specification:
Probes | Frequency | Diameter | Measuring Range (steel) | Application |
PT-12 | 5 MHz | 12mm | 1.0-200mm | Standard Probe |
PT-08 | 5 MHz | 10mm | 0.8-100mm | Standard Probe |
PT-06 | 7.5 MHz | 7.6mm | 0.8-30.0mm | Miniature Probe |
ZT-12 | 2 MHz | 16.2mm | 4.0-300mm | Lowe frequency Probe |
PT-04 | 10 MHz | 5mm | 0.8-20.0mm | Minisize Probe |
GT-13 | 5 MHz | 14mm | 4.0-80.0mm | High Temperature probe |
