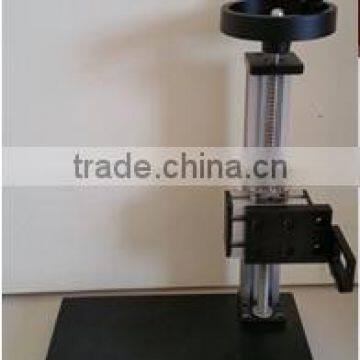

The Surface Profile Gauge Stand for optional

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	TMTECK
Model Number	stand

The Stand for TMR200 for optional

The performance index of sensor:

The performance index of sensor:
The detection principle	Current induction
Measuring range	160 μm
Tip radius	5 μm
Tip material	Diamond
Stylus force	4mN(0.4gf)
Stylus angle	90°
The guide head vertical radius	45mm

Technical parameters:

Item	Description
The maximum driving trip	17.5mm/0.7inch
Indicating error	Not more than ± 10%
Variation of indication	Not more than 6%
The measured profile	Roughness, waviness, the original contour
Parameter	Ra(0.005μm ~ 16μm),Rz(0.02μm ~ 160μm),Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.
Filter	RC,PCRC,Gauss,ISO13565
The sampling length L	0.25mm,0.8mm,2.5mm,8mm
Evaluation length L	(1-5)l
Internal storage capacity	100 groups of original data
External input / output interface	USB
Electric source	Built-in rechargeable lithium ion battery or external power adapter

Outline dimension:

143 x 55 x 42mm (host).

Weight: about 0.4KG (host).
