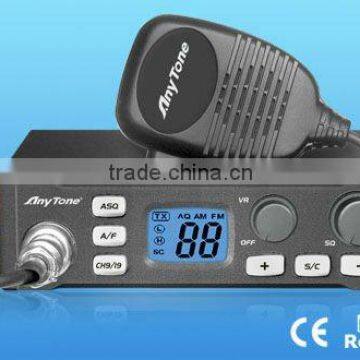

AT-310M Vechile radio with CE&RoHS approval

Detailed Product Description

AT-310M Vechile radio with CE&RoHS approval

CE approval
new hot item,
own beautiful outer panel and stable function

Frequency:ODM project

Function:
channels:E D EU EC PL UK US NZ
Expand Mode Freq:RU PO PC
Emergency call channel avaiable(CH9)

SQ function.

ASQ function.

1)       GENERAL

Modulation modes               : AM/FM

Frequency ranges               : 26.965---27.405MHz

Antenna impedance             : 50 Ohms

Power supply                  : 13.2V

Dimensions(in mm)             :

Weight                        :

2)       TRANSMISSION

Frepuency allowance            :  +/- 300HZ

Carrier power                   :  1W/4W

Transmission interference        :  inferior to 4nW(-54dBm)

Audio response                 :  300HZ to 3KHZ in AM/FM

Emitted power in the adj.channel  :  inferior to 20uW

Microphone sensitivity           :   3mV

Drani                          :   max 3A

Modulated singal distortion       :   inferior to 5%

3)       RECEPTION

Max sensitivity at 20dB sinad     :   0.8uV -113 dBm  FM

                                                    1.5uV -103 dBm   AM

Frequency response            :    300HZ to 3KHZ in AM/FM

Adjacent channel selectivity      :    60dB

Maximum audio power          :    3W

Squelch sensitivity              :    Minimum 0.2uv  -120 dBm

                                   Maximum 1mV  -47 dBm

Drani                          :   0.3A nominal/1.2A maximum
