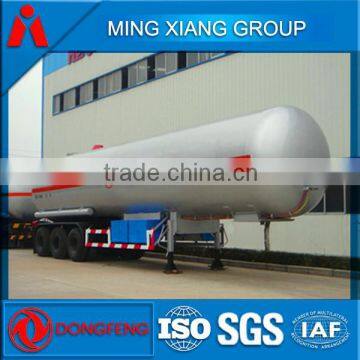

LPG tank semi-trailer

Semi-Trailer

Curb weight

16420kg

Max payload

23580kg

Max G.V.W

40000kg

Overall Dimensions(L×W×H)

12995x2500x3950mm

I Beam& Chassis

Heavy duty and extra durability designed I beam; Opting for high

tensile steel Q345B, welded by automatic Submerged-Arc processes.

Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 500mm,

Bottom Flange 20mm,width 140mm.

Axle

13tons FUWA heavy duty axles

Suspension

Heavy duty mechanical suspension

Leaf Spring

Leaf spring

King Pin

JOST 2” Bolt-in King Pin

Landing Gear

Jost landing gear.

Tire

12R22.5(Tubless), Qty. 13.

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks

Electric System

Gladhand, 24V-coupler, Rear lamp. Side lamp, 7-Pin coil wireless, Led light.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.

Accessories

One standard tool box and other necessary devices

Tanker

Design Pressure

1.77Mpa

Design temperature

50 ℃

Filling medium

LPG

Tank material

Q345R

Tank mass

11745kg

Corrosion allowance

1.00mm

Tank capacity

56.14 m3

Hydraulic test pressure

2.66Mpa

Overall Dimensions(L×W×H)

DN2450x14x12796 mm

Emergency shutoff device

Nominal pressure

PN2.5Mpa

Nominal diameter

Gas phase

DN 25mm

Liquid phase

DN 50mm

Operation way

Hydraulic type

Closing time

≤10 Sec

Melting switch temperature

70±5℃

Safety valve

Type

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN80mm

Opening pressure

1.86~1.94 MPa

Closing pressure

1.49~1.55MPa

Complete opening pressure

<2.12 MPa

Gauge tank

Type

Rotary type

Nominal pressure

PN2.5Mpa

Surveying range

0~2400mm

precision

2.5 Grade

Handing Device

Model

Quick-tie-in

Nominal Diameter

Gas phase

DN 25mm

Liquid phase

DN 50mm
