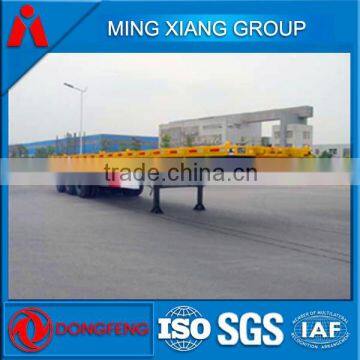

3 Axles Flatbed Semi Trailer for Sales

Outside dimension(mm)

Length:12400     width:2500   height:1650

Gross weight(kg)

40000

Tare weight(kg)

5000

Wheelbase(mm)

6650+1310+1310

Loading capacity(kg)

60000

Axles

2/3/4   13/16/20T     FUWA or BPW

ABS system

with

Maximum loading capacity of semi trailer saddle(kg)

16000

Front/rear suspension(mm)

-/1830

Approach/departure angles(°)

-/17

The number of spring leaves(front/rear)

-/10/10/10,-/8/8/8

Rear wheeltrack(mm)

1840/1840/1840

Tires

12 Triangle or othe brand

Tires specification

11.00R20 14PR,12R22.5 14PR

Axle load

-/24000 (3 axles)

Rim

8.25×22.5/9.00×22.5     China brand

King pin

JOST 2.00 or 3.5

Support legs

28tons or according to the requirement of the buyer

Twist lock

4,8or12pieces

The material of main beam

The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,middle plate is 8 mm,made of Q345steel

Brake Chamber

6double-chambers

Electrical System

24V,7 wire harness

Tool box

One piece or according to the requirement of the buyer

Painting

Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

VIN No.

LA996RBC×××SYL×××

Chassis name

Cargo truck chassis

Reflective warning signage

Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd.

Brand:TONGMING         Product Type:TM1200-1

Others

1. This vehicle is used to transport 40FT container.

2. ABS system:         type: HNABS4S/4M.

Manufacturer:   Liangshan Haina Electronic Technology Co., Ltd.

3. Under-run protector:with the material of Q235B,be welding with the main body

4. Rear under-run protector: the height above the ground is 500mm   Section:150mm*55mm.

Shipping terms

By bulk cargo carrier,RORO
