Home > Products > Pen Hardness Tester > Heat Treatment Steel Hardness Tester HRC

Heat Treatment Steel Hardness Tester HRC

FOB Price

US$ 470 - 490 / Piece

1 Piece(Min. Order)

Port Beijing
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Solid
Model Number	Lpad H200

Product Description

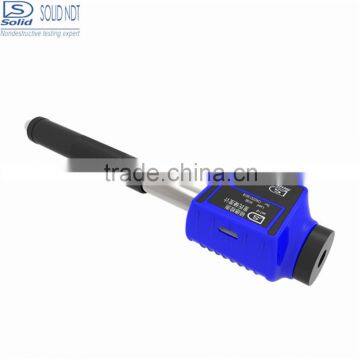

Heat Treatment Steel hardness tester HRC

Hardness Tester

Feature

The H series of Lpad are the portable hardness testing instruments, which integrated the smartest NDT technology and the smallest dimension. The Lpad hardness tester is a revolutionary product that can test most of the metal objects. With the pen type design and innovative D/DL impacting probes, the Lpad H series products provide convenient and reliable experience of testing.

With its small size, impressive design, competitive price, convenient using experience, The Lpad hardness tester can wildly be used in various situations. f

Specification

Testing Direction	Standard Equipped:		Resolution
Highly accurate in any impact direction	The instrument host The nylon brush	1	128×64 OLED display
Testing Range	Small bearing rings	1	Dimensions
(170-960)HLD, (17.9-69.5)HRC, (19-683)HB,(80-1042)HV,(30.6-102.6)HS,	The ABS instrument	1	148mm×40mm×30mm
(59.1-88)HRA, (13.5-101.7)HRB	Applicable Materials		Power Supply
Hardness Standards	Steel and cast steel, alloy tool steel, stainless steel,gray cast iron,nodular cast iron, cast aluminum alloy,copper zinc alloys (brass), an alloy of copper and tin, copper(bronze)		Rechargeable lithium battery
HL,HV,HRA,HRC, HRB,HB,HV,HS	Application		Working Hours
Accuracy	Bearings and other parts;		About 10 hours
HLD:±6 (760HLD)	Failure analysis of pressure vessel, steam turbine generator group and equipment;		Working Conditions
Repeatability Value	Heavy workpieces;		Operating temperature: 10-50 c;
HLD:±6 (760HLD)	Mechanical or permanent assembly installed;		Storage temperature: -30 ℃ -60 ℃;
HLD:±6 (760HLD)	The test space is very narrow;The original record of formal requirements on test results;		Humidity: 90% max;

Application:

Ability

Solid(Beijing) Technology Co.,Ltd is a high-tech business enterprise located in the Beijing , based on research and development, production and marketing of industrial testing equipment .Our team has a solid technical strength and rich marketing experience. We provide reliable industrial testing products and related technical services for our customers in all over the world.
