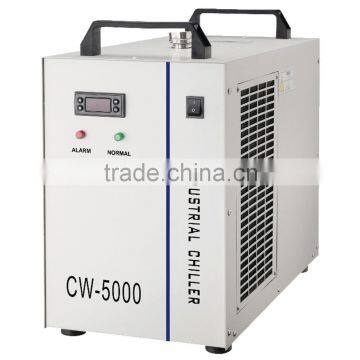

CW 3000/5000/5200 Industrial Automatic Water Cooling Chiller

Introduction:

With design patent Certificate, CE and RoHS Certificate;
This Water Chiller has been sold largely to Europe, South America, Asia and other markets;
Economic cooling equipment, easy to install and operate, compact and easily movable.

Feature:

• Comprehensive reference to the international radiator - type cooling system;
• Small thermolysis water cooler;
• With completed water flow and over high temperature alarm functions;
• Enclosed water tanks;
• Professional forced air - cooled radiator;
• Equipped with alarm output port.
• Multiple power specifications; CE approval; RoHS approval.

Advantage:

• CW-3000 laser water chiller is suitable for small water cooling device;
• Provide stable working conditions for laser devices;
• Water can be used for a long time;
• High heat dissipating capacity and not easy to be blocked;
• Alarm output port can quickly protect sensitive components

Used for

It is designed for cooling the one CO2 glass laser tube under 80W of the laser engraving and cutting machine. (Its emitting rate is lower than 60%, you can choose CW5000 /SL-1 Water Chiller if you want the emitting rate higher than 60 %.)

Benefit

• Specific disconnection alarm securing protection;
• High cost performance, low failure rate;
• Cool Capacity is 50W / ℃;
• Forces circulation, 9L cooling tank capacity;
• It can extend the using life of laser tube and ensure the engraving effect better.

Parameters

Notice

Industrial cooling machine’s installation is very simple, the new machine for the first time using, you can install it as following steps.

A. Open the package and check the machine and all accessories.
B. Open the mouth screw on the top of machine, add cooling water (Please don’t power the machine without water).
C. Connect the inlet and outlet hose between water cooler and laser engraving machine.
D. Connect the power cable, turn the power switch (Note: Don’t let the water overflow).
E. Check the radiator water level again (Keep the distance between water level and mouth is 80 – 150mm).

Caution
A cooler water condition in the absence of electricity is prohibited!
Location placed cooler should select a well - ventilated, dry environment, away from other heat sources. Outlet of the back of the cooler should be away from obstruction for more than 30cm, both sides of the inlet should be away from obstructions for more than 10cm.
Cooling machine no use for long time or in transport must keep emptying the cooling water.
To protect the laser tube, cooling fan will suspend the work when the water temperature is low (about 10℃), and it will continue to work when the water temperature rose to higher (about 20℃).
