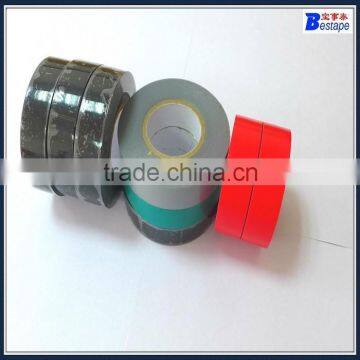

Super Grade Vinyl Insulation tape with factory price
- NINGBO
- T/T
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | BESTAPE | |
Model Number | WS | Type | Insulation Tape | |
Material | PVC | Application | High Voltage | |
Rated Voltage | 600V | Tensile Strength | 20-30N/cm |
Product Description
Super Grade Vinyl Insulation tape with factory price
Description:
The super grade electrical tape is a thin premium grade plasticized polyvinyl chloride film coated with a super aggressive rubber adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture.
Application:
It is specifically designed for special wire insulation and other electrical insulating application. It is better to wrap wires with a half-lap , the last layer should be no tension to prevent flagging.
Technical Data:
Properties | unit | Typical Data | Test Method | |||||
WS110 | WS130 | WS150 | WS165 | WS180 | WS200 | |||
Total Thickness | mm | 0.110 | 0.130 | 0.150 | 0.165 | 0.180 | 0.200 | ASTM D1000 |
Width | mm | 19 | 19 | 19 | 19 | 19 | 19 | ASTM D1000 |
Tensile Strength | N/cm | 20 | 22 | 25 | 28 | 30 | 30 | ASTM D1000 |
Elongation | % | 200 | 220 | 220 | 250 | 250 | 250 | ASTM D1000 |
Adhesion Strength ·to steel ·to Backing |
N/cm N/cm |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 |
1.8 1.6 | ASTM D1000 |
Dielectric breakdown | V | 600 | 600 | 600 | 600 | 600 | 600 | UL510 |
Temperature Resistance | °C | 80 | 80 | 80 | 80 | 80 | 80 | ASTM D1000 |
Other properties:
·Color : Black and other
·Surface Texture : Matt/Glossy
·Shelf Life: 12 months when stored in original carton at 23℃×65%R.H.
Availability
·Standard length: 10yd,20yd, 20m,30m or to the customer's requirements
·Standard inner diameter of core: 32mm, 38mm, 42mm,76mm
·Standard width: 19mm, 25mm, 50mm, 1250mm
