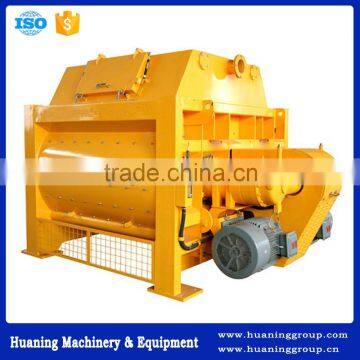

High Productivity Twin Shaft Concrete Mixer 2000 liters

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Model Number	JS2000	Mixing Power	2x37 kw
Charging Capacity	3200 L	Reclaiming capacity	2000 L
Speed of Mixing Drum	24.5 r/min	Water Supply Mode	Water pump
Working Cycle Period	60 s	Discharge Way	Pneumatic or hydraulic discharge
Outline Dimension	3500x2400x2125 mm	After-sales Service Provided	Engineers available to service machinery overseas

High Productivity Twin Shaft Concrete Mixer 2000 liters

Overview of Concrete Mixer 2000 liters

High Productivity Twin Shaft Concrete Mixer is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Features of Concrete Mixer 2000 liters

Parameters of High Productivity Twin Shaft Concrete Mixer 2000 liters

Type		JS1500B	JS2000	JS3000
Discharge Capacity (L)		1500	2000	3000
Feed Capacity (L)		2400	3200	4800
Productivity (m³/h)		≥90	≥120	≥180
Max. Aggregate Size: Pebble/Gravel (mm)		≤80/100	≤80/100	≤100/120
Work Cycle Time (s)		60	60	60
Mixing Blades	Speed (r/min)	24.5	24.5	21
Mixing Blades	Quantity	2×7	2×8	2×10
Mixing Motor (kw)		2x30	2×37	2×55
Dimensions (L × W × H)		3000×2400×2074	3500×2400×2125	4050× 2680 ×2125
Total Weight (kg)		6500	7500	9200
