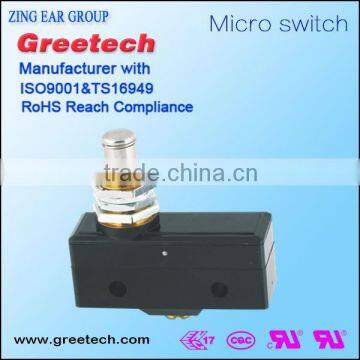

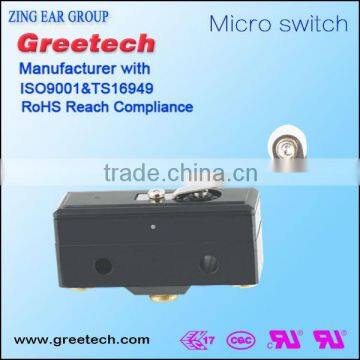

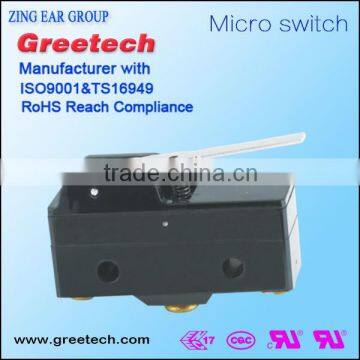

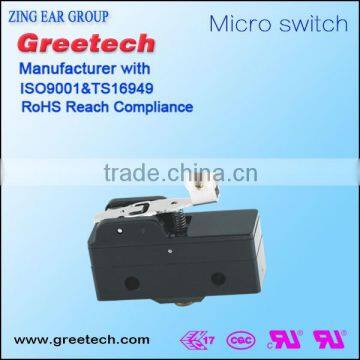

ZING EAR auto on off switch types of electrical limit switch t85micro switch
- 3000000 Piece / Pieces per Month
- Shenzhen & HK
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G12 micro switch | Max. Current | 125VDC 250VDC 125VAC 250VAC 277VAC 480VAC | |
| Max. Voltage | 0.25A 0.5A 16A 22A 26A | Operating Temperature | -40℃ - +85℃ | |
| Protection Level | IP40 IP65 IP67 |
Product Description

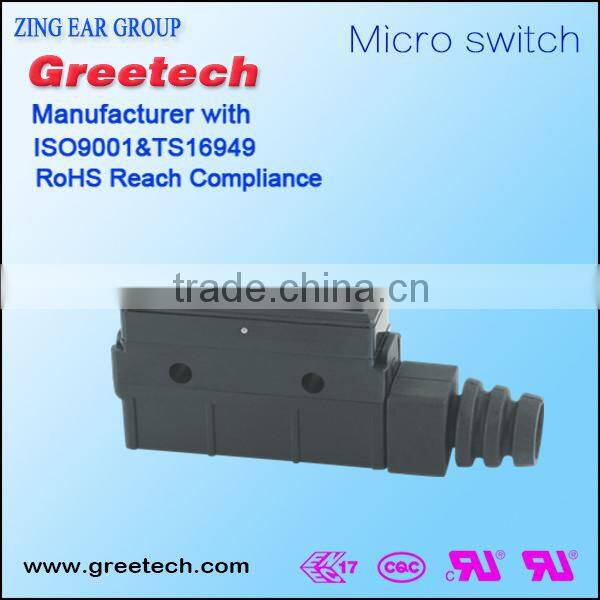

ZING EAR auto on off switch types of electrical limit switch t85micro switch
Feature:
-Tight Configuration,Small Contact Gap , Snap Action
-Long Life, High Reliability
-Global Safety Approvals
-Variety of Terminals
-Wide Range Operating Force
-Wide Range Temperature Grade
-With Optional PTI Grade
-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.
-Variety of Levers

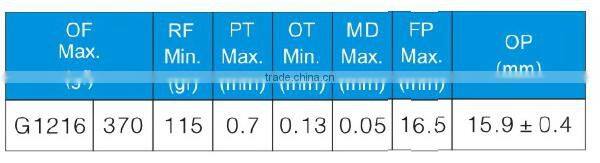

Parameters:
| 16 A | 16A 125/250 or 480VAC 1/8HP 125VAC 1/4HP 250VAC 0.5A 125VDC 0.25A 250VDC | |||||||||||||
| 16A 125/250VAC 5E4 µ 40T85 | |||||||||||||||
| 22 A | 22A 125/250 or 480VAC 1/4HP 125VAC 1/2HP 250VAC 0.5A 125VDC 0.25A 250VDC | ||||||||||||||
| 22A 125/250VAC 5E4 µ 40T85 | |||||||||||||||
| 26 A | 26A 125/250 or 480VAC 1/2HP 125VAC 1HP 250VAC 0.5A 125VDC 0.25A 250VDC | ||||||||||||||
| 26A 250VAC 5E4 µ 40T85 | |||||||||||||||
| Frenquancy |
| 10~30 cycles/minute | |||||||||||||
| Mechnical | 240 cycles/minute | ||||||||||||||
| Contact resistance | 50mΩ Max. | ||||||||||||||
| Isoluted resistance | 500VDC,100MΩ Min. | ||||||||||||||
| Test Voltage | Terminals:1500VAC 50/60Hz 1min Terminal vs housing:2500VAC 50/60Hz 1min | ||||||||||||||
| Termperature |
| ||||||||||||||
| Humidity | 85%RH Max | ||||||||||||||
| Lifetime | Electrical | 50,000 | |||||||||||||
| Mechincal | 10,000,000 cycles cycles | ||||||||||||||
| Neight weight | about 60g | ||||||||||||||
| Contact metarial | Silver contact | ||||||||||||||

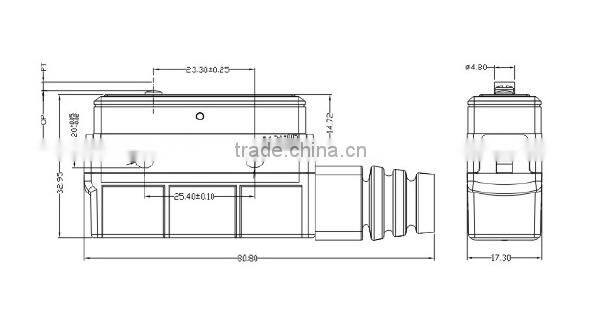

Drawing:
More about packaging details:
No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
Inner box size(mm) | Q'ty/(pcs) | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ (pcs) | L/T (Days) | Total GW(kgs) | ||
1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9.0 |
3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |

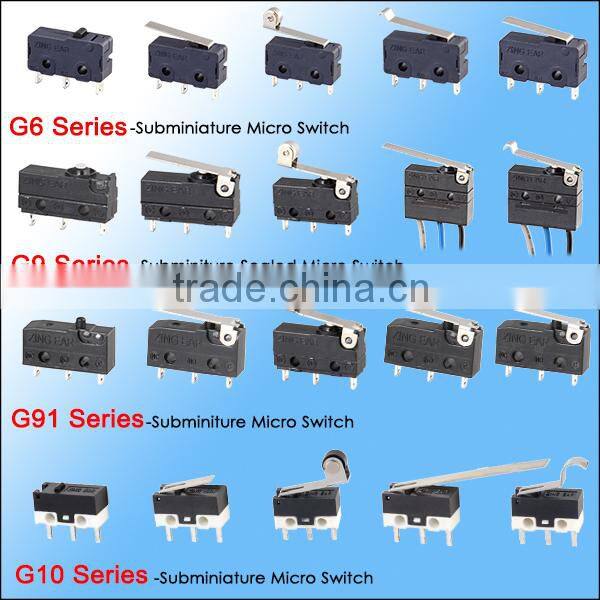

4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12.0 | 6,000 | 15 | 12.0 |
9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping:
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics

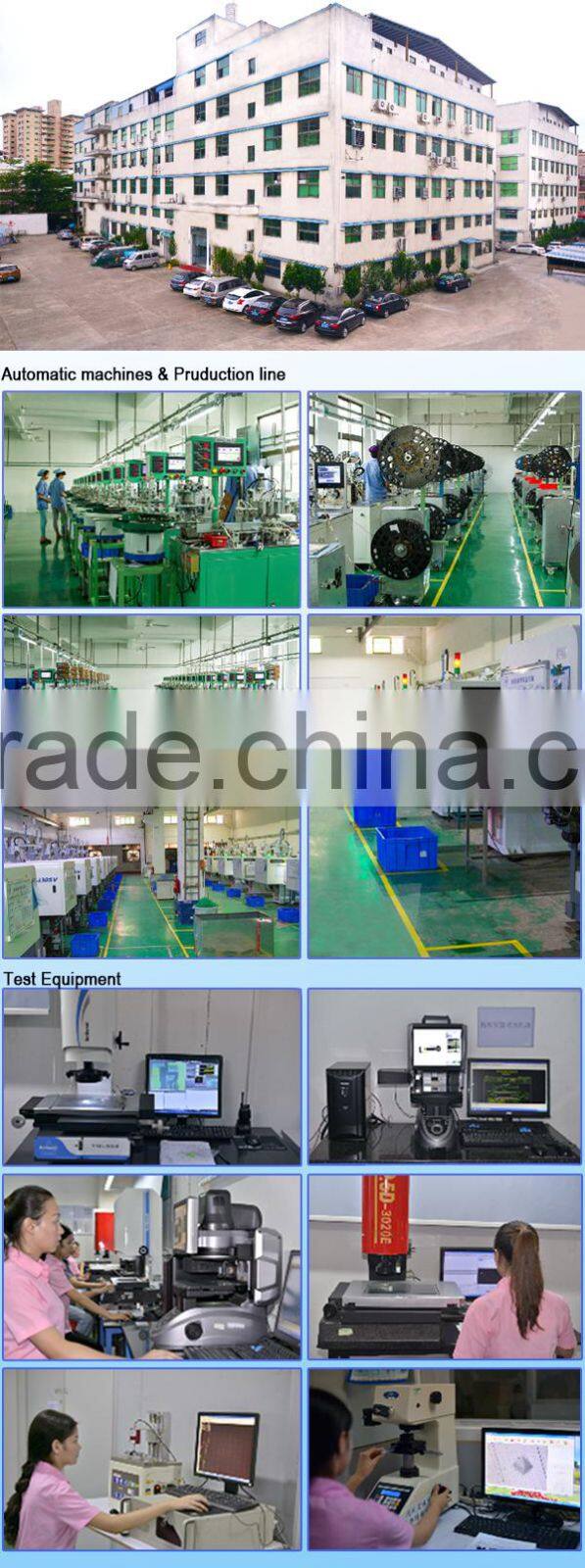

3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Trade Shows and Customer Visiting:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
