PVC Sheet Plastic Machinery
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, Sheet, Printing, Vacuum Forming,Stationery, Package Medicine, Bags | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TEPC | |
| Voltage | 220-480V | Power(W) | 30-200KW | |
| Dimension(L*W*H) | 40X3X2 | Weight | 8000kgs | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Models of PVC Sheet Plastic Machinery

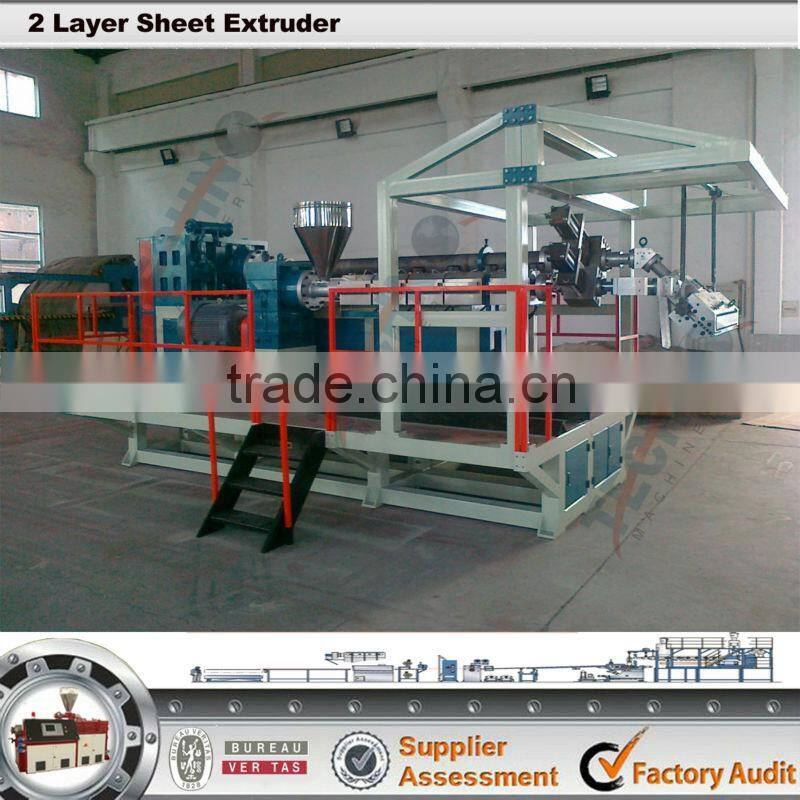

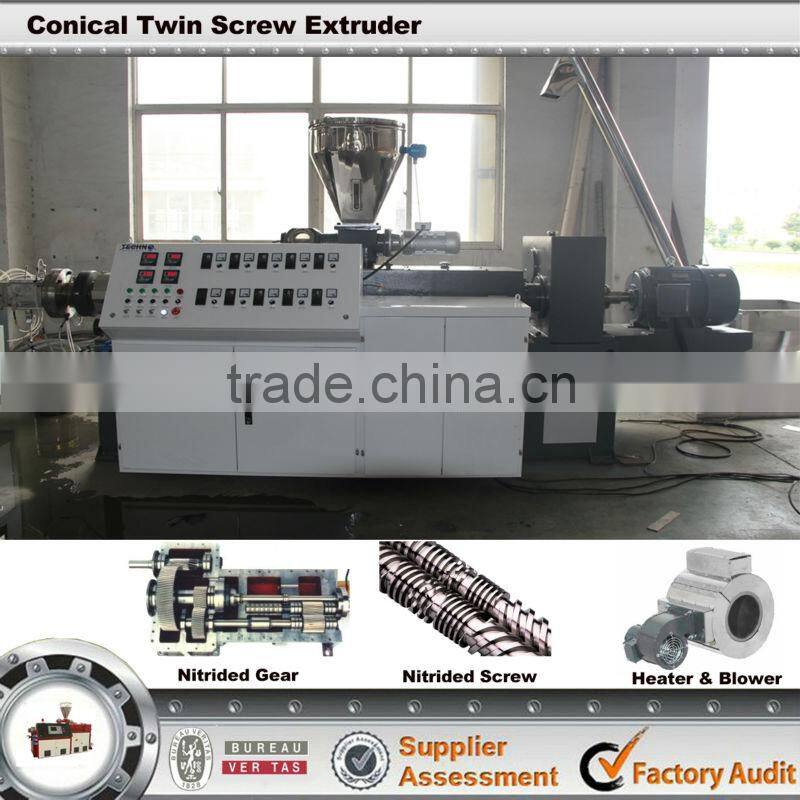

Extruder | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
Product Width | 100-320mm | 500-1000mm | 500-2000 | 500-3000 |
Product Thickness | 0.2-2mm | 0.2-2mm | 0.2-2mm | 0.2-2mm |
Main Power | 18.5KW | 37KW | 55KW | 90KW |
Max Output | 120Kg/h | 250kg/h | 380Kg/h | 450Kg/h |

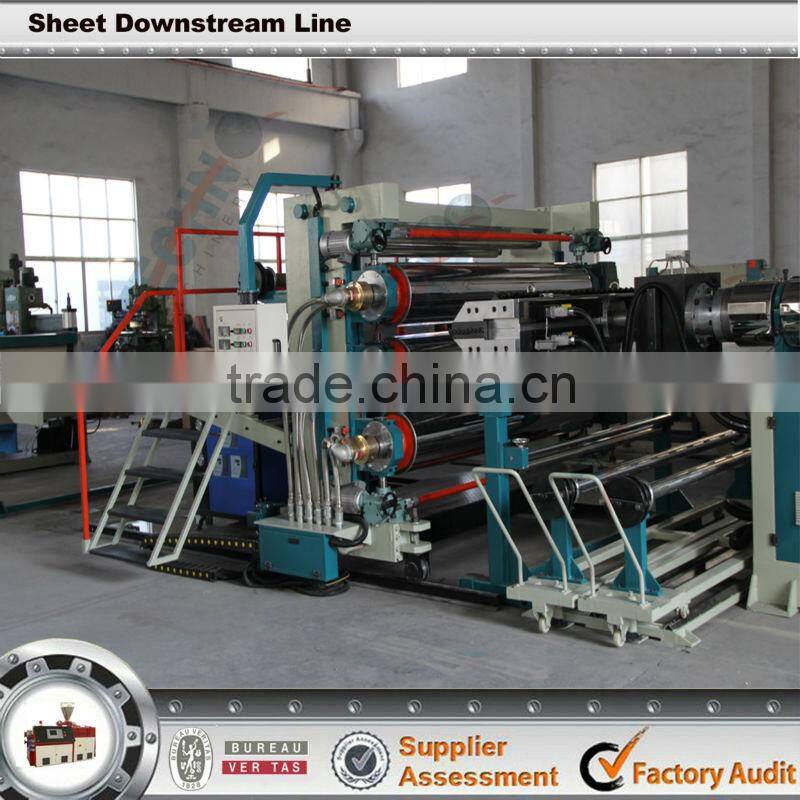

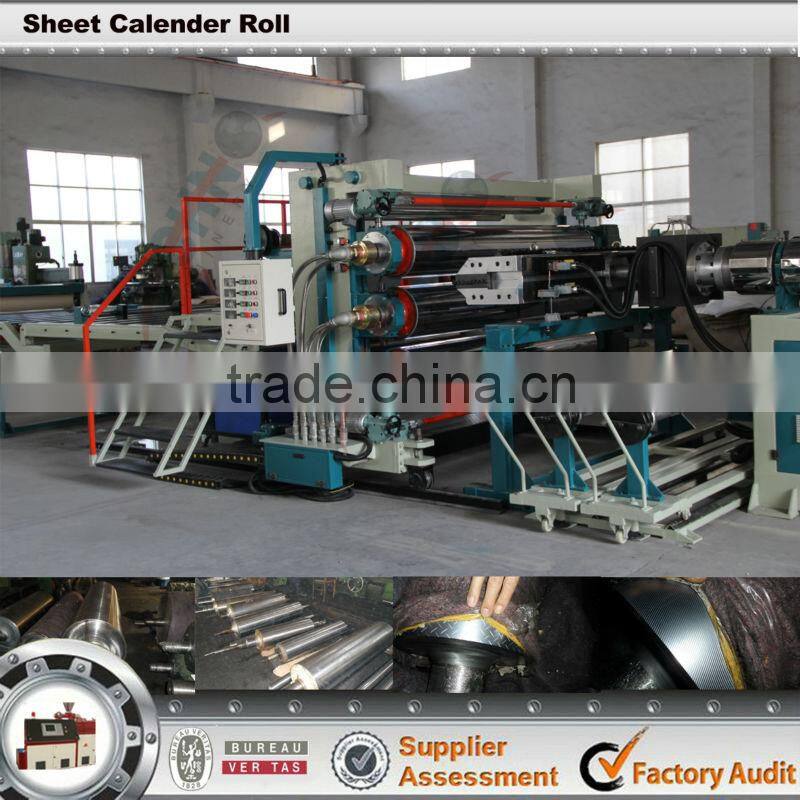

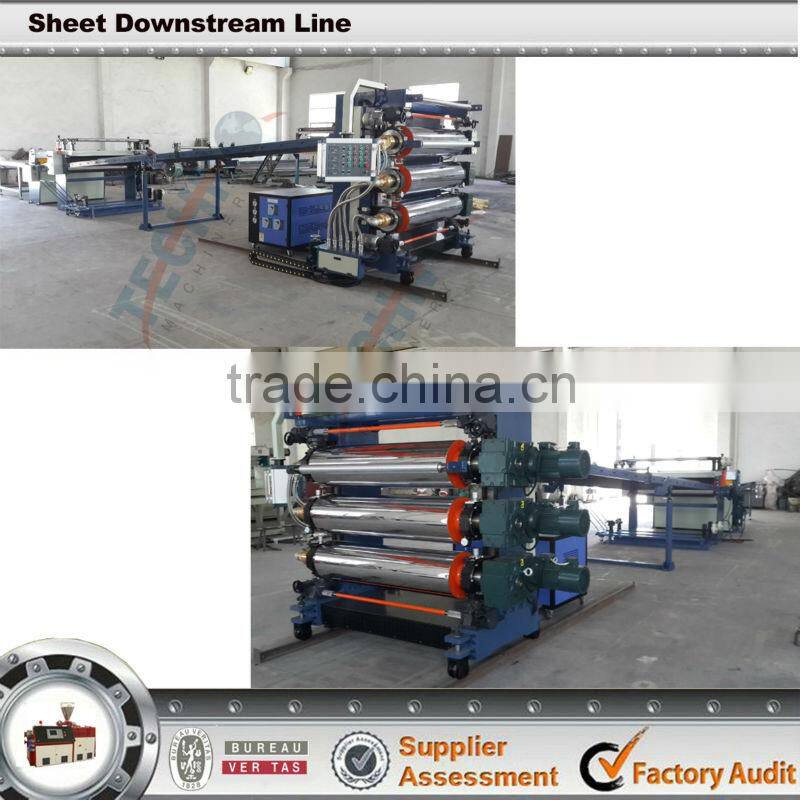

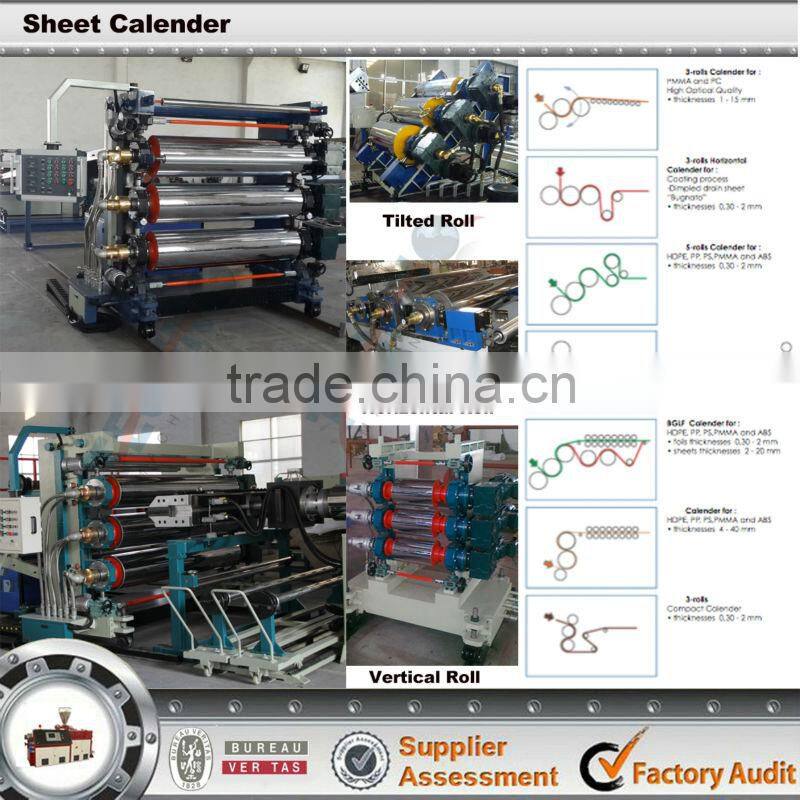

Techno Sheet Roll Calender System
Roll Width | 220-3000mm |
Roll Construction | Solid Roll with peripheral cooling holes, Displacement body roll |
Roll Diameter | 250-800mm |
Roll Arrangement | Horizontal, Vertical, Tilted |
Roll Gap Adjustment | Variable from 0-100mm |
Gap Adjustment | Servo-hydraulic |
Gap Adjustment Precison | 0.005mm |
Line Speed | 0.05-100m/min |
Drive System | AC Servo Drives |
Roll Surfaces | Chrome-plated, polished finish, high polished mirror, matt, embossed, structured |
Embossing Patterns | Upon Inquiry |

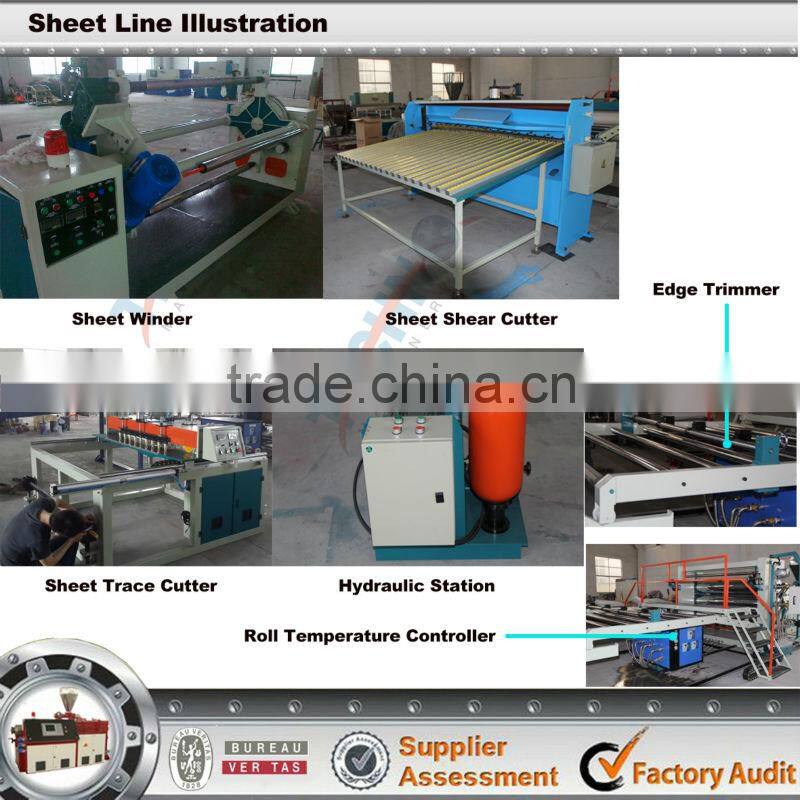

PVC Sheet Plastic Machinery Illustration
Standard Export Seaworthy Packing PVC Sheet Plastic Machinery
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunction are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1) plastic pipes production line 2) plastic profiles production line 3) plastic sheet production line 4) plastic pellets production line 5) plastic mixers 6) plastic pulverizer 7) tire recycling machinery.......
Term of Payment
a. L/C
b. T/T ( 30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
Contact Us
- Zhangjiagang Techno Machinery Co., Ltd.
- Contact nameIven Koo Chat Now
- Phone86-512-56795381
- AddressRoom 307, 3rd Floor, P Building, No. 3, Zhenxing Middle Road
