Well Performanced Plastic Sheet Making Machine
USD $20,000 - $300,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
-
Double Layer PP PS Plastic Sheet Extruder Machine
-
PET 3 layer Plastic Sheet Extrusion Machine with Co-extrusion
-
Two Layers Plastic Sheet Forming Machine
-
PP/PS Mono-layer or Multi-layer Plastic Sheet Forming Machinery
-
120mm Diameter Screw LDPE Plastic Sheet Machinery
-
Plastic Sheet Extrusion Line/HDPE Sheet Making Machine
Quality Choice
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | Other, PVC,PE,PP,PS,PET,ABS,PMMA | Screw Design | Other, Single screw or twin screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TEP | |
| Voltage | 220-480V | Power(W) | 30-200KW | |
| Dimension(L*W*H) | 40000*3000*2000mm | Weight | 8000KGS | |
| Certification | CE/ISO Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Well Performanced Plastic Sheet Making Machine
Product Description
Plastic Sheet Features
1. Width: 300-2200mm
2. Thickness: 0.2-10mm
3. Capacity: 300-450kg/h
4. Superior transparence and aging resistance
5. Higher impact resistance than normal glass
6. Flame Retardant
7. Heat resistance
8. Application: Printing, Vacuum Forming, Stationery, Package, Medicine, Bags

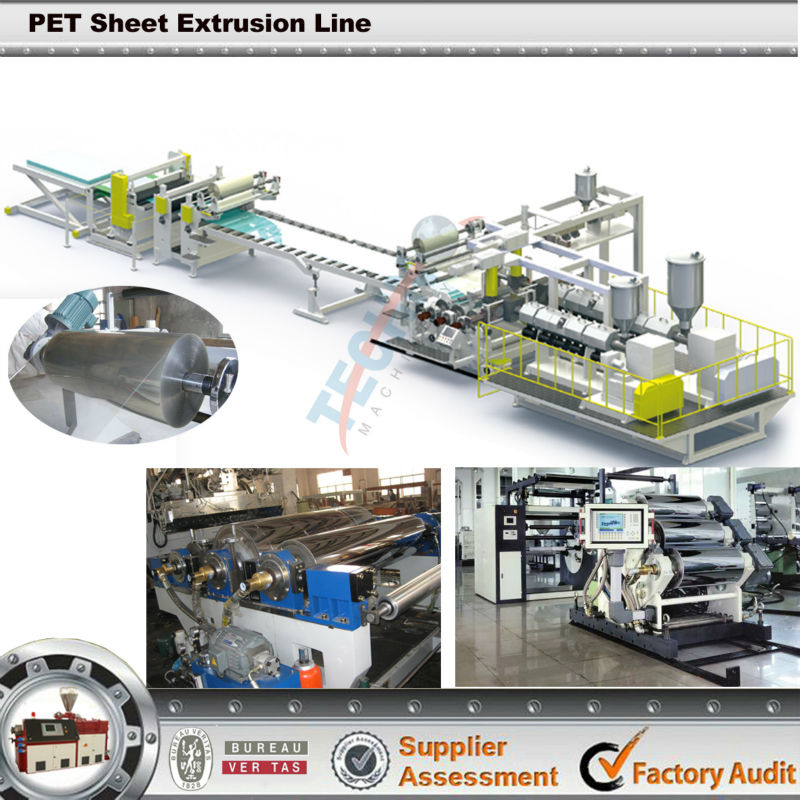

Illustration of Plastic Sheet Making Machine
Plastic sheet production line adopts different screw designs and mechanical configurations to be suitable for manufacturing a variety of plastic sheet (eg:PP,PE,PS,ABS,PMMA,etc.)
1. Extruder: special design of screw, precise temperature control system, good plasticization, high output and stable extrusion
2. Screen exchanger: hydraulic, fast and efficient changing
3. T-die: high grade alloy-steel material, multi-channel design and adjustable die lip gap
4. Three-roll calender: horizontal/vertical/tillted roll arrangement, adjustable roll gap to ensure calender effect and equipped with roll temperature controller
5. Cooling frame: cold roll, fan cooling and equipped with siding trimming
6. Winder: equipped with high quality torque motor, adjustable rewinding speed and tension
Plastic sheet extrusion process: plastic pellets are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender, the produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet, after the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.
Plastic sheets produced from this type of extrusion equipment are sturdy,yet remains somewhat flexible.
Packaging & Shipping
Standard Export Seaworthy Packing Plastic Sheet Making Machine
Our Services
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Company Information
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
FAQ
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
