Home > Products > Multimedia Kiosk > 32 inch floor stand advertising Kiosk with touch screen

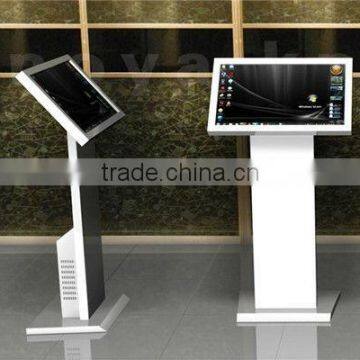

32 inch floor stand advertising Kiosk with touch screen
USD $500 - $1,999
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | USER | |
| Model Number | US-T3201HC |
Product Description
32 inch floor standing advertising Kiosk,touch screen
| Specifications | ||||||||||
| Model No. | US-T3201HC | |||||||||
| Panel size | 32“ TFT-LCD | |||||||||
| Display area(mm)/mode | 700(W)×394(H) 16:9 | |||||||||
| Maximum resolution | 1366x768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.511(H)×0.511(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1500:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared touch screen | |||||||||
| Positioning accuracy | ±2mms | |||||||||
| Transmittance | ≥92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point, multipoint(optional) | |||||||||
| Response time | <=10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 60 million | |||||||||
| Input and output | ||||||||||
| Composite video input | 3(BNC×3) | |||||||||
| YUV Input | 1 (BNC×3) | |||||||||
| S-video | 1(BNC X2) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 2(BNC×2) | |||||||||
| L/R Audio input | 1 (RCAx2) | |||||||||
| L/R Audio output | 1 (RCAx2) | |||||||||
| USB2.0/Serial/SP2 input | 2(for touch screen use) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( multiple language option required) | |||||||||
| Computer | ||||||||||
| Main chipset | Intel G41+ICH7 | |||||||||
| Main board | ONDA G41 | |||||||||
| CPU | Intel Pentium Dual E5500 (2.8G) | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated IntelGMX 4500 | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | 2G DDRIII (max 4G) | |||||||||
| Hard Disk | 320G SATA | |||||||||
| Operation system | Windows 7 | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=55W | |||||||||
| Standby power consumption | <=1W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 496.7X323.1X66(for your reference) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | Wall-mounted(default), desktop | |||||||||
| Certificate | CE/FCC/3C/RoHS | |||||||||
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M | |||||||||
