Little Animal Gastroscope Bronchoscope3.8mm Portable Flexible Reusable Video Veterinary Endoscope

 These instruments have been designed to used with a suction pump and endo -therapy accessories and other ancillary equipments for airway  management, which include endoscopic diagnosis and treatment, observation to access airway anatomy, endotracheal / endobronchial intubation and management.

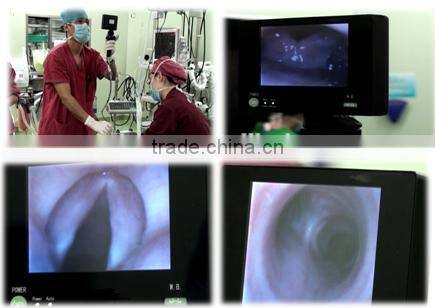

2,Double-lumen endobronchial intubation positioning

Double lumen endobronchial tube has been widely used in chest operation, the advantage is to avoid the risk of side discharge into the contralateral.But the double lumen intubation techniques are highly required, We used to locate the position of a double lumen  tube by the auscultatory method, but this method has certainblindness, the success rate is very low.

Using the flexible video bronchoscope to positioning, improve the success rate of first intubation

3, Difficult airway management

The most difference between the video laryngoscope and our flexible video endoscope is the difficult airway level the flexible video bronchoscope can cope with When those situation happened, the rigid video layrngoscope can't cope with it, but the flexible one can cope with it.

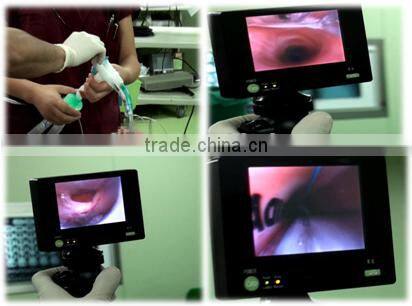

Operation Procedure:

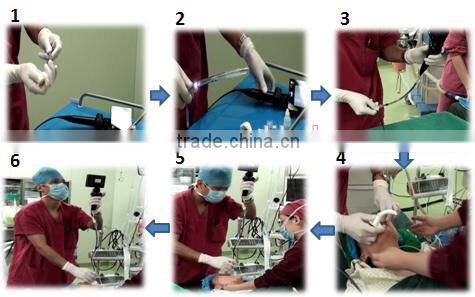

11 steps to do the intubation, the following is the standard operation procedure.

1.  Lubricate both the ET tube and the shaft (insertion tube) of the endoscope.

2.  Insert the ET tube and fix it to the ET tube adaptor.

3.  Turn on the endoscope, and then adjust white balance and check distal end bending.

4.  Insert the shaft of the endoscope into the patient’s oral cavity with the help of jaw thrusting.

5-6. Insert the shaft and bend the distal end up and down appropriately and timely, keeping watching the monitor screen.

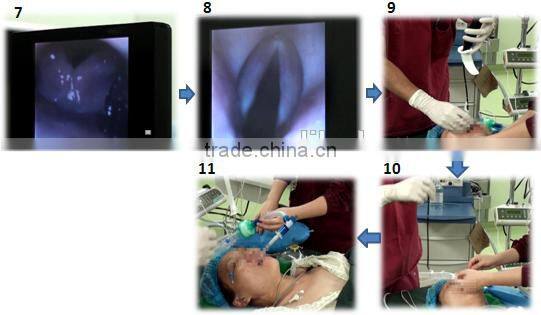

7.  Find the epiglottis, and then adjust the control knob to bend the distal end appropriately as well as rotate the control handle slightly to let the distal end slide through blow the epiglottis.

8.  Find the vocal cord.

9.  Hold the endoscope and then push and rotate the ET tube to intubate the patient quickly.

10. Pull out the shaft of the endoscope quickly and watch the monitor screen to verify the right positioning of the ET tube meanwhile.

11. Connect the ET tube to a ventilator quickly.

Technical Information:

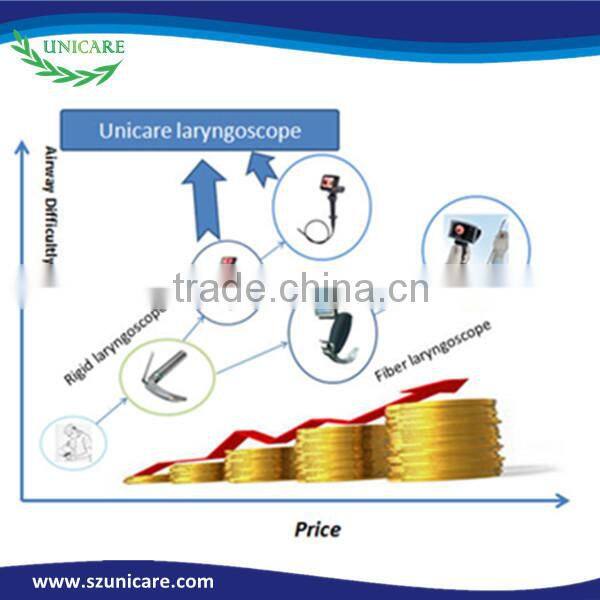

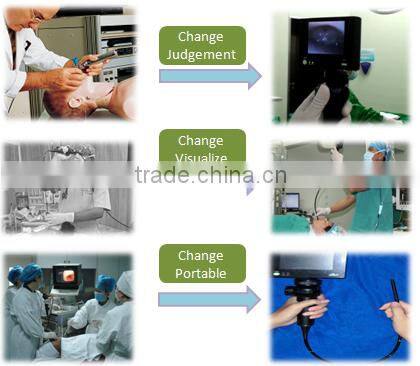

1,The difference between the tranditional fiber laryngoscope and new portable video endoscope

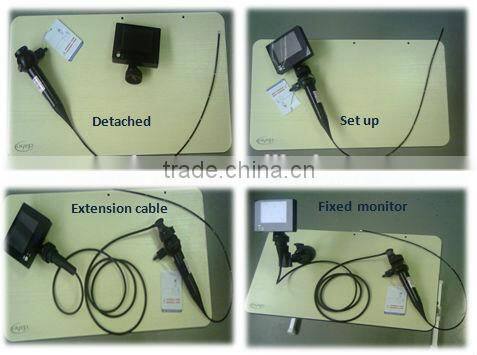

2,Can be used at different way:Combine use, Isolated part, Extension cable.

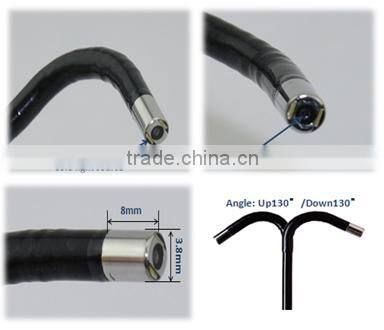

3,The distal end of the flexible tube,different out diameter suitable to different patient like child and adult.

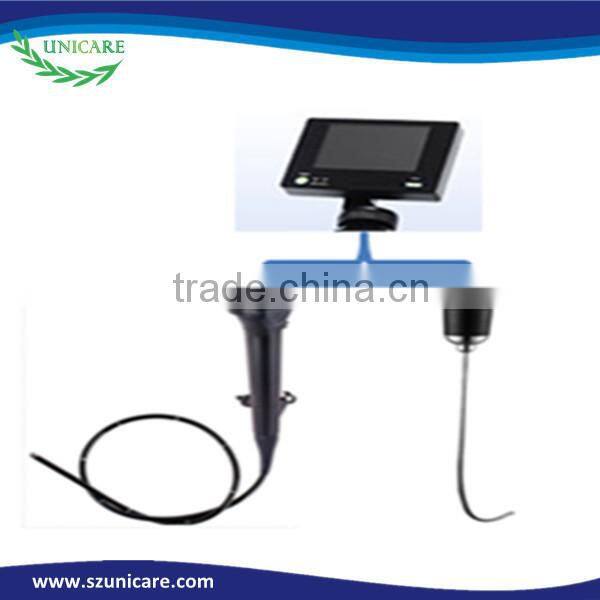

4,The monitor compatible flexible video laryngoscope with rigid stylet video laryngoscope.

5,Mainly Parameters of these instruments as following:
