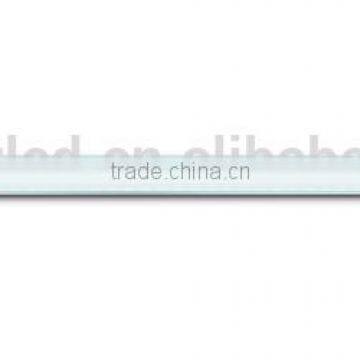

t8 led sensor light

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type

t8 led sensor light

Certification

CCC, CE, CQC, EMC, GOST, LVD, RoHS

Product Description

Features

☆ Based on the Principle of Doppler effect, radar sensor controlled by special CPU, smart testing ambient environment, auto-adjustable working status, longer sensor distance, broader angles, no blind spot, penetrate glass, wood board, not affected by environment, temperature and dust

☆ Ultra-low power consumption at still mood, generally at 2-2.5W, adjustable according to different environment, auto-response to work at full capacity, adjustable time at the range of 2-60s according to different conditions, response sensibility range: 1-9m

☆ Optical-grade PC cup, releasing uniform light from the surface

☆ Power Driver: Broadband voltage, OCP, OVP, SCP

Applications

Aisle, Passageway, Bathroom, Basement, Garage, Warehouse, Monitoring Room

Parameters

Basic Info	Description	Radar T8 Tube	Radar T8 Tube
Basic Info	Model	CD-T812I-18C/N/WWM1	CD-T812-18C/N/WWM1
Aspect	Material	Aluminum Alloy+PC	Aluminum Alloy+PC
	Body Color	White	White
	Dimension	W32H28L1217	W32H34L1212
Electrical	Watts(W)	18	18
	Input Voltage(V)	AC 100～240	AC 100～240
	Frequency	50～60Hz	50～60Hz
	Power Mode	Internal	External
	Power Factor	＞0.95	＞0.95
	Power Efficiency	＞85%	＞85%
Optical	LED Brand	Jingke/Hongli	Jingke/Hongli
	LED Type	2835	SMD 2835
	LED Qty.(pcs)	96	96
	Luminous Flux(lm)	1530	1530
	CCT(K)	2700～6500	2700～6500
	Light Color	Cold,Natural,Warm	Cold,Natural,Warm
	CRI(Ra)	＞80	＞80
	Beam Angle(°)	130°	130°
	Dimmable	Unavailable	Unavailable
Application	Install Mode	Suspended、Ceiling Mounted	Suspended、Ceiling Mounted
	Operation Temperature(℃)	-10℃～40℃	-10℃～40℃
	Operation Hummidity(RH)	10%RH-90%RH	10%RH-90%RH
	Storage Temperatures(℃)	-40°～80°	-40°～80°
	Lifetime(hrs)	＞35000	＞35000
	Ingress Proctection	IP20	IP20
Protection	Energy Saving	60%	60%
	Constrasted to	36W Fluorescent T8	36W Fluorescent T8
	Unit Net Weight(Kg)	0.318	0.279
Packing	Unit Gross Weight(Kg)	0.371	0.333
	Unit Packing(mm)	13003737	12203636
	Qty./Carton(pcs)	50	50
	Carton Size(mm)	1325375205	1250280280
	20FT Qty（）	240	224
