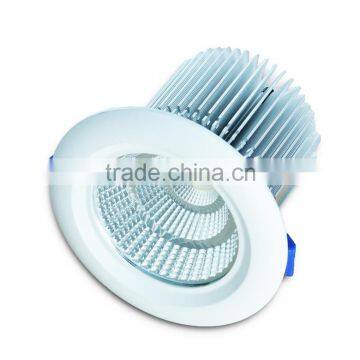

4w recessed down light

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type

recessed down light

Certification

CE ROHS EMC LVD

Product Description

Features

☆ LED Area Light Source: softer and more uniform light than conventional fluorescent lamps’, avoid glare;

☆ Simple heat dissipation structure, less weight, more reliable;

☆ Available with white coating and aluminum brushed processing, matching well with plaster tablet, aluminum gusset and other decorating materials;

☆ Available with buckle/recessed installation, and various installation structure of traditional lamps, easy to mount and maintain ;

☆ High protection level: Better than traditional fluorescent lamps, anti-fog, prevent flying insect in, avoid accumulated dust, easy to clean;

☆ Instant-on, quiet.

Applications

Mall, Hotel, Exhibition Hall, Office, Hotel, Hospital, Home, Entertainment Venues

Parameters

Basic Info	Description	Recessed Down Light
Basic Info	Model	CD-DL100-4W/N/CD0A6	CD-DL110-5W/N/CD0A6	CD-DL150-7W/N/CD0A6	CD-DL180-14W/N/CD0A6	CD-DL190-14W/N/CD0A6	CD-DL230-20W/N/CD0A6
Aspect	Material	Aluminum+PMMA
	Body Color	Silver White
	Dimension	D100*55	D110*55	D150*H65	D180*H95	D190*H70	D230*H100
Electrical	Watts(W)	4	5	7	13	13	20
	Input Voltage(V)	AC 100～240
	Frequency	50～60Hz
	Power Mode	External
	Power Factor	＞0.5	＞0.5	＞0.9	＞0.9	＞0.9	＞0.9
	Power Efficiency	＞78%	＞78%	＞82%	＞87%	＞87%	＞88%
Optical	LED Brand	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli
	LED Type	SMD 5630	SMD 5630	SMD 5630	SMD 5630	SMD 5630	SMD 5630
	LED Qty.(pcs)	8	10	12	24	24	40
	Luminous Flux(lm)	240	300	420	850	850	1500
	CCT(K)	2700～6500	2700～6500	2700～6500	2700～6500	2700～6500	2700～6500
	Light Color	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm
	CRI(Ra)	＞80	＞80	＞80	＞80	＞80	＞80
	Beam Angle(°)	100°	100°	100°	100°	100°	100°
	Dimmable	Unavailable	Unavailable	Unavailable	Unavailable	Unavailable	Unavailable
Application	Mounting Size(mm)	D70-95	D80-105	D100-135	D140-160	D160-185	D195-215
	Install Mode	Recessed
	Operation Temp(℃)	-10℃～40℃
	Operation Hummidity(RH)	10%RH-90%RH
	Storage Temp(℃)	-40°～80°
	Lifetime	＞35000hrs
Protection	Ingress Proctection	IP20	IP20	IP20	IP20	IP20	IP20
	Energy Saving	50%	50%	50%	50%	50%	50%
	Constrasted to	1*8W Fluorescent Lamp	1*11W Fluorescent Lamp	1*13W Fluorescent Lamp	2*13W Fluorescent Lamp	2*13W Fluorescent Lamp	2*18W Fluorescent Lamp
Packing	Unit Net Weight(Kg)	0.10	0.12	0.22	0.34	0.40	0.71
	Unit Gross Weight(Kg)	0.163	0.188	0.283	0.457	0.498	0.830
	Unit Packing(mm)	13567135	13567135	16572165	205117205	21082210	250117250
	Qty./Carton(pcs)	50	50	50	50	50	50
	Carton Size(mm)	690350285	690350285	840375345	950600425	975425435	1175600515
	20FT Qty（）	336	336	252	72	120	72
