Home > Products > Building material equipments > Powered by Electric Motor of Tilting Drum Cocrete Mixer

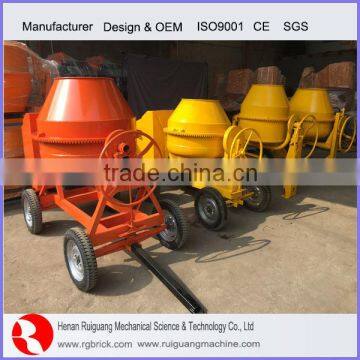

Powered by Electric Motor of Tilting Drum Cocrete Mixer

FOB Price

US$ 1,000 - 2,800 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Ruiguang	Model Number	RGCM
Motor Power	6HP-13HP	Mixing Power	6HP-13HP
Charging Capacity	125L-550L	Reclaiming capacity	100L-400L
Speed of Mixing Drum	25-30RPM	Water Supply Mode	Mannual
Working Cycle Period	120s	Discharge Way	Manual
Outline Dimension	2100x1060x1200mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction

China leading small-medium-large sized side tilting concrete mixer. Robust build and quality parts. Ruiguang mixer is available with a fast tow build, improving mobility and versatility.

Advantages

A low cost, Hand-fed/mechanically fed manual tilting drum mixer

100 litres,150 litres,175 litres,200 litres, 260 litres, 375 litres,400 litres,550 litres mixed batch output

High capacity mixer capable of producing up to 30 batches (12 cubic metres) per hour

Robustly engineered with fully enclosed drivelines, provide safe, reliable performance and long service life

Multi-position lockable drum, Highly efficient , spun steel drum

Outrigger legs maintain stability throughout the loading cycle

Technical parameters

Model	RGCM-4C 350D	RGCM-4C 350R	RGCM-4C 350G	RGCM-4C 350E
Engine Option	Air-cooled Diesel Engine 178FS	Water-cooled Diesel Engine R175	Gasoline engine	Electric motor
Engine Power	6HP	6HP	6.5HP	220V/380V 3KW
Drum total volume	350L-0.35m³-12cu.ft
Unmixed capacity	280-0.28m³-10cu.ft
Mixed capacity	235-0.235m³-8cu.ft
Drum rotation speed	25-30 rpm
Quantity of Batches per hour	20 cycles
Output per hour	4700L-4.7m³-160cu.ft
Packing Size (L×W×H mm)	1860x860x1100

Remarks:

Other drum size and mixer models avaialbe,feel free to contact for more detials.
