Home > Products > Diesel Water Pump > KINGCHAI Power Machinery 2Inch Diesel Water Pump with 170F Diesel Engine for Agricultural Irrigation

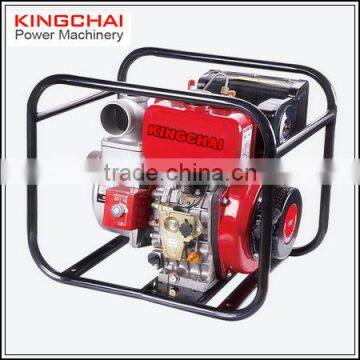

KINGCHAI Power Machinery 2Inch Diesel Water Pump with 170F Diesel Engine for Agricultural Irrigation

FOB Price

US$ 1 - 200 / Unit

20 Units(Min. Order)

Port NINGBO / SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	KINGCHAI
Model Number	KC50DKB	Theory	Centrifugal Pump
Structure	Piston Pump	Usage	Water
Power	Hydraulic	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	Low Pressure
Application	Other, Agriculture

Product Description

KINGCHAI Power Machinery 2Inch Diesel Water Pump with 170F Diesel Engine for Agricultural Irrigation

- Specificatioin:

Model			KC50DKB	KC80DKB	KC100DKB
Water Pump	Suction.Discharge Port did. (mm)		50 (2 ")	80 (3")	100 (4")	High Pressure Water Pump
	Capacity	Max.Capacity (m3/h)	36	50	96
	Capacity	ContCapacity (m3/h)	22	36	64
	Head	Max.Head (m)	26	25	31
	Head	Cont.Head (m)	15	13	16
	Self-priming Time (s/4m)		80	120	180
	Max.Suction Head (m)		8	8	8
	Engine Model		KC170F/E	KC178F/E	KC186F/E
	Rated power (Kw)		2.5	3.7	5.7
	Bore x Stroke		70x55	78x62	86x70
	Displacement (cc)		211	296	406
	Compression ration		20:1		19:1
	Fuel consumption (g/kw.h)		284	280	273
	Fuel tank capacity (L)		2.5	3.5	5.5
	Lube capacity (L)		0.75	1.1	1.65
	Rotation direction		Clockwise	Clockwise	Clockwise
	Lubrication system		Pressure splashed	Pressure splashed	Pressure splashed
	Lube oil type		SAE-10W30 (above DC grade)	SAE-10W30 (above DC grade)	SAE-10W30 (above DC grade)
	Fuel type		(summer) 0#; (winter) 10#	(summer) 0#; (winter) 10#	(summer) 0#; (winter) 10#
	Starting system		Recoil starter/Electric starter	Recoil starter/Electric starter	Recoil starter/Electric starter
	Engine Speed (r/min)		3000/3600	3000/3600	3000/3600
	N.W./G.W. (kg)		35/37	52/54	64/67
	Dimension (LxWxH) (mm)		500x420x500	560x440x550	650x480x600

-Features & Picture

1.Diesel water pump,garden pump,pump,

2.Powered by air-cooled, 4-stroke diesel engine

3.Large volume water discharge

4.Highly effective mechanical seal

5.Compact and light weight structure

- Orther gaoline generator productions

-Factory & Workshop

- Packaging & Shipping

-Certificate

-Contact Information:

-FQA:

1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Yongkang City, Zhejiang Province, China.

we have one offce in Taizhou city, which is near Ningbo & Shanghai.

3.Q:What is the material of your products

A: Iron,Steel,plastic,etc.

only new material can be used for our products

4.Q:How about quality control in your factory?
A:"Quality is first, Customers are friends".

Yongkang Fushitong people are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.

We keep goods to meet the standard of CE,CCC, ISO9001:2000.

5.Q:How about guarantee?

A: It's within three months after goods is discharged in the destination.

During that period,if some breakdown easily spare parts need to change,my factory offers free.

For example, fuel cock,spark plug,starting hand,etc.
