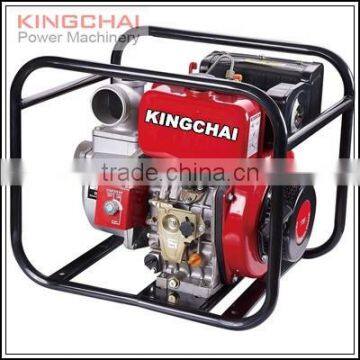

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

FOB Price

US$ 150 - 220 / Set

20 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Agricultural Irrigation Diesel Engine Water Pump 2inch 3inch 4inch With Lower Price

Product Description

Model			KC50DKB	KC80DKB	KC100DKB
Water Pump	Suction.Discharge Port did. (mm)		50 (2 ")	80 (3")	100 (4")	High Pressure Water Pump
	Capacity	Max.Capacity (m³/h)	36	50	96
	Capacity	ContCapacity (m³/h)	22	36	64
	Head	Max.Head (m)	26	25	31
	Head	Cont.Head (m)	15	13	16
	Self-priming Time (s/4m)		80	120	180
	Max.Suction Head (m)		8	8	8
	Engine Model		KC170F/E	KC178F/E	KC186F/E
	Rated power (Kw)		2.5	3.7	5.7
	Bore x Stroke		70x55	78x62	86x70
	Displacement (cc)		211	296	406
	Compression ration		20:1		19:1
	Fuel consumption (g/kw.h)		284	280	273
	Fuel tank capacity (L)		2.5	3.5	5.5
	Lube capacity (L)		0.75	1.1	1.65
	Rotation direction		Clockwise	Clockwise	Clockwise
	Lubrication system		Pressure splashed	Pressure splashed	Pressure splashed
	Lube oil type		SAE-10W30 (above DC grade)	SAE-10W30 (above DC grade)	SAE-10W30 (above DC grade)
	Fuel type		(summer) 0#; (winter) 10#	(summer) 0#; (winter) 10#	(summer) 0#; (winter) 10#
	Starting system		Recoil starter/Electric starter	Recoil starter/Electric starter	Recoil starter/Electric starter
	Engine Speed (r/min)		3000/3600	3000/3600	3000/3600
	N.W./G.W. (kg)		35/37	52/54	64/67
	Dimension (LxWxH) (mm)		500x420x500	560x440x550	650x480x600
