Machine Description:

LTA-5060 roll to roll screen printing machine is designed to print on material in roll, such as PET, PVC, PE, PV, PP film.

This automatic screen printing line is composed of a feeding machine, a printing machine and a hot air dryer.

The feeding machine has dust removal rollers, it is able to alarm when the roll material run out.

The printing machine table has vaccum to hold on PET film in position to ensure printing accuracy. It is equipped with three photocell sensors to enable automatic registration.

The hot air dryer has 60M and 80M long for option. It is able to rewind the material into a roll after being dried.

High level of automation, only one people can operator the the whole printing line.

High printing accuracy, multi color overprint can be done on the machine

High productivity, production capacity equal to six sets of semi-automatic screen printing machine

Application: heat transfer films, labels and stickers, membrane switches, graphic overlay, IMD, IML, RFID, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.

Machine Parameters:

 Machine Photos:

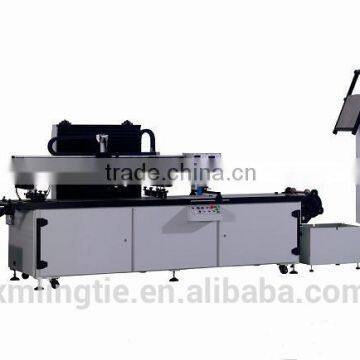

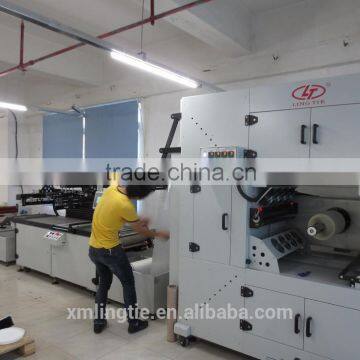

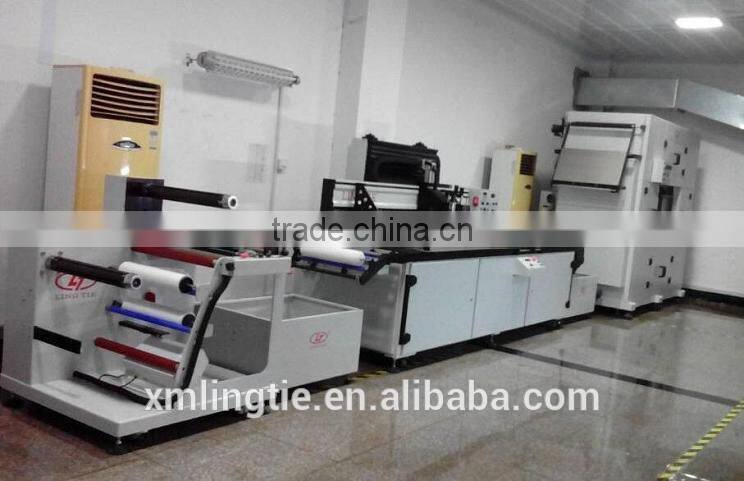

Roll to roll screen printing machine has a feeding machine, a screen printing machine and a hot air dryer.

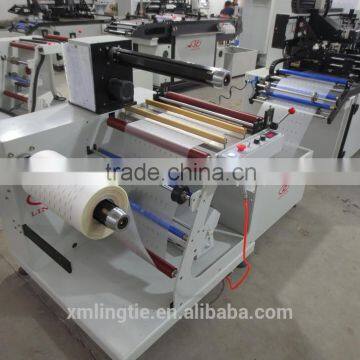

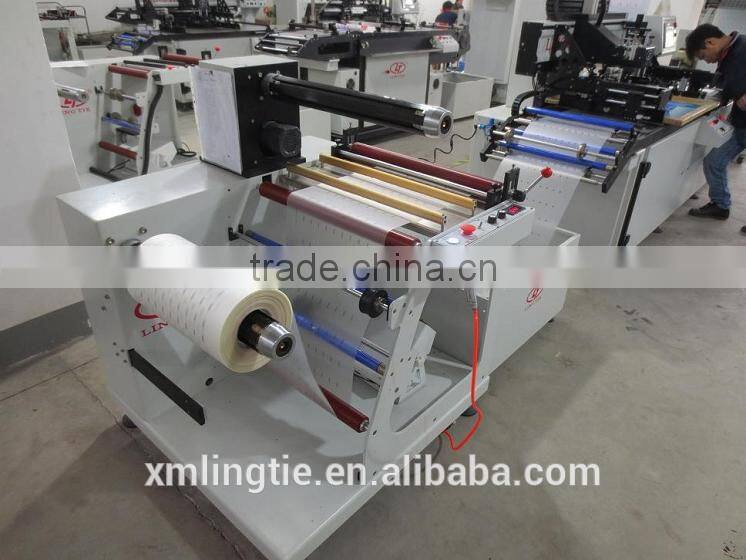

The PET film roll is loaded in the feeding machine.

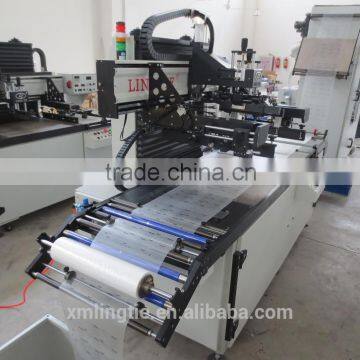

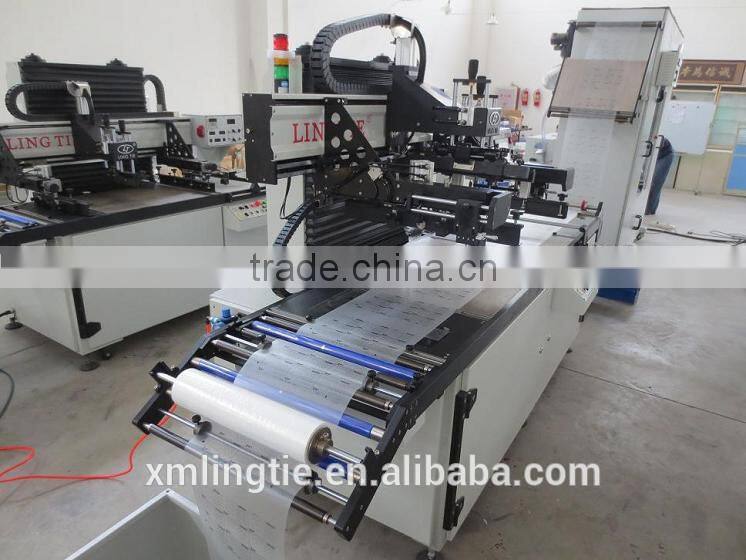

Vaccum table holds on the PET film for screen printing.

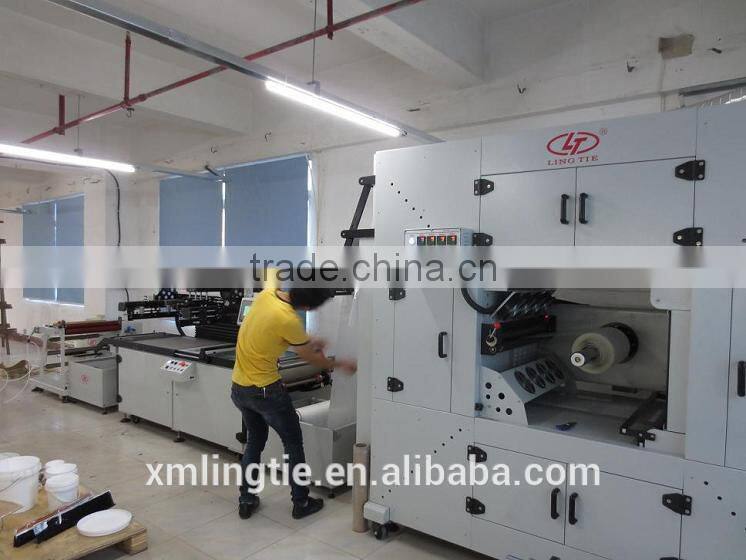

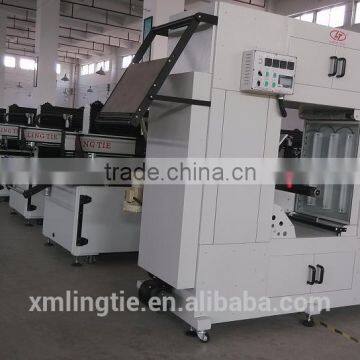

The hot air dryer has a inner loop 60M or 80M long. It is able to rewind the PET film into a roll after being dried.

Printed Samples:

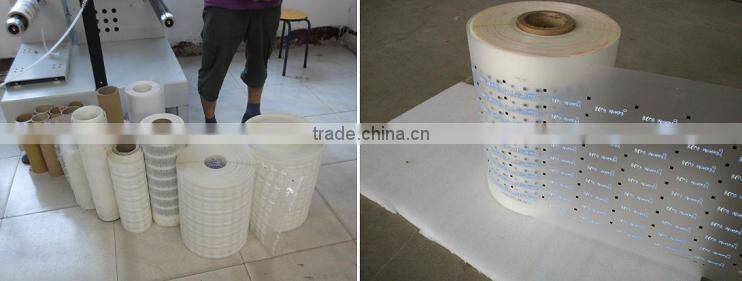

Heat transfer labels printed by roll to roll screen printing machine.

Garment care label printed by roll to roll screen printing machine.

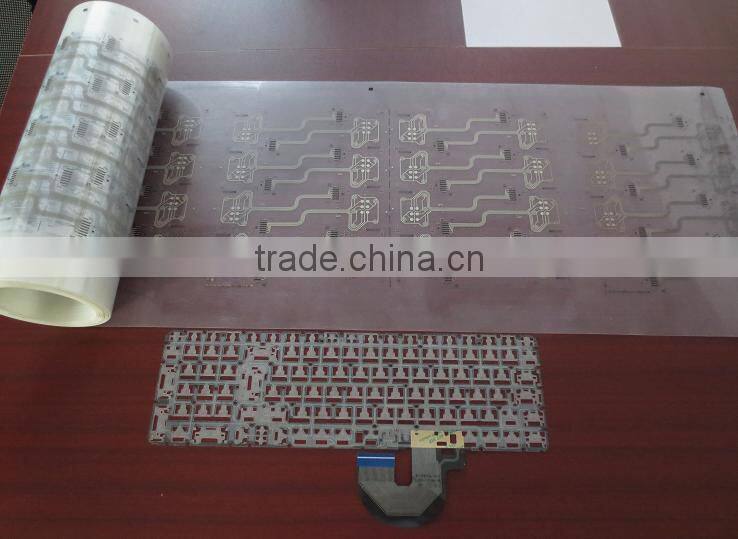

 FPC and membrane keyboard printed by roll to roll screen printing machine.

Machine Package:

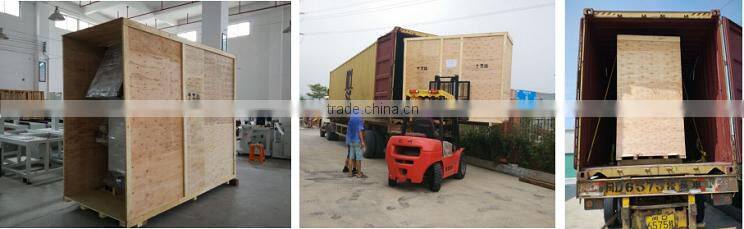

Roll to roll screen printing machine is packed in wooden box for delivery by container.

Company Information:

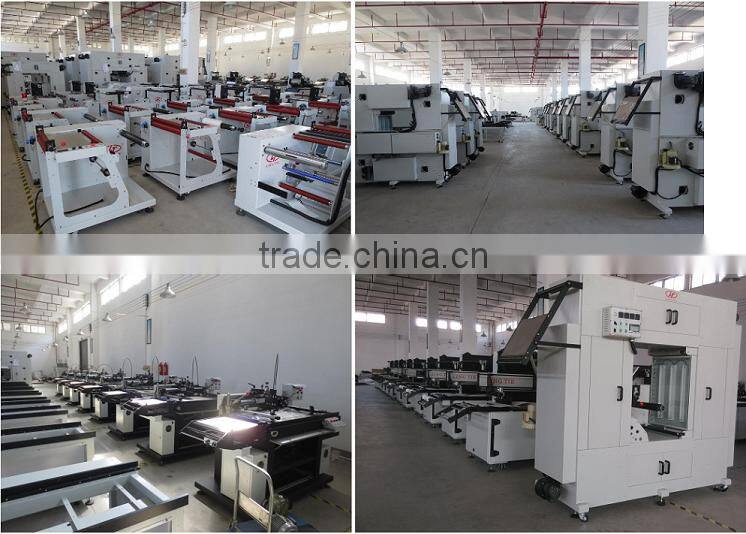

Lingtie (Xiamen) Machinery Co., Ltd. is located in Xiamen City, Fujian Province, China. We're the top and outstanding manufacturer of automatic roll to roll screen printing machine in China. By focusing on the research and development of automatic roll to roll screen printing machine for 12 years, we have built us favorable advantages and rich experience in this field.

Our automatic roll to roll screen printing machines have been widely used in printing heat transfer films (PE/PVC/PE/PET/PP/BOPP), labels and stickers, IMD, IML, RFID, FPC, nameplates, membrane switches, non-woven fabric, etc.

In the past 12 years, we constantly improve our technology to meet domestic and foreign customer needs. Have exported to Hungary, India, Turkey, Iran, Vietnam, Korea and Singapore, etc. Good product and good service are what we are doing all the way. Contact us today to access excellent automatic roll to roll screen printing machines.
