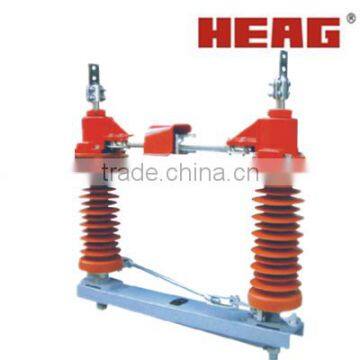

GW4-12/40.5 Outdoor HV Disconnect Switch 11KV 33KV breaker disconnector

Summary of GW4-12(40.5) Outdoor HV Disconnect Switch 11KV 33KV breaker disconnector :
GW4-12(40.5)outdoor AC high voltage disconnect switch (disconnect switch for short) is used to open and close circuit with voltage but no-load 50/60Hz, 12(40.5)kV power system. It accords with standards of IEC62271-103: High voltage switches and GB1985 and other relative standards.

Technical Specification of GW4-12(40.5) Outdoor HV Disconnect Switch 11KV 33KV breaker disconnector :

Structure of GW4-12(40.5) Outdoor HV Disconnect Switch 11KV 33KV breaker disconnector :
This disconnect switch consists of pedestal, insulating brace, electric material and operating mechanism. There are two braces on each pole, and electric blade is installed on the top of each brace and the connection point of the two blades is between the two braces . With the driving of operating mechanism, the two blades can rotate horizontally ninety degrees to close. We can connect three single-pole disconnect switches into a linkage three-pole switch through interlink rod. This dis connect switch can be matched with CS11 type or CS17 type manual mechanism, thereinto, CS17 be used in disconnect switch with earthing fitting. (motor mechanism can be installed according to user's requirement), Reasonable structure, flexible operating; convenient installation, able to use single-pole or three-pole; wide distance of contact, safe and reliable insulating. The ear thing type is flexible according to user's requirement, single earthing dual earthing or without earthing can be chosen.

Ambient Condition of GW4-12(40.5) Outdoor HV Disconnect Switch 11KV 33KV breaker disconnector :
1. Altitude: ≤3000m;
2. Ambient temperature: -25℃ ~+40℃ ;
3. Wind speed: ≤35m/s;
4. Pollution degree: ≤III;
5. Earthquake intensity: ≤8 degree;
6. Applicable occasions should free from inflammable, explosives, caustic gas.
