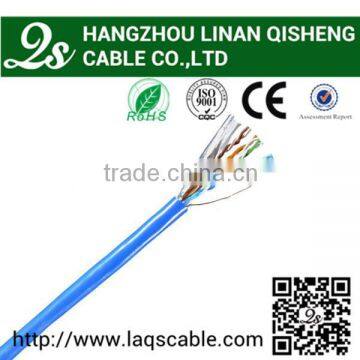

10years-experience oem specialized in cat6 stp or utp 4 pairs network cable supplying free sample

Specifications

CAT5 SFTP 4 PAIRS CABLE DATA SHEET

Messenger cable: 0.8mm steel with pvc/pe jacket

Electrical Performance
1 Low Frequency
2 Dielectric Strength:2.5kVdc-2 second

3 DC Loop Resistance:Max 19ohm/100m
4 Resistance Unbalance:Max 2%
5 Insulation Resistance:Min 500 Mohm-km@100-500Vt
6 Capacitance Unbalance(pair to ground):Max1600pF/100m

Electrical Characteristic:

1.0-100.0MHz Impedance (ohms): 100 ohm+/- 15 ohm

1.0-350.0MHz Delay Skew (ns/100m): <=45

Pair-to-Ground Capacitance Unbalance (pF/100m): <=330

Max. Conductor DC Resistance 20oc(ohms/km): 6.58

Products Description
ISDN, 10BASE-T (IEEE802.3), 100BASE-T (IEEE802.3),
155 Mbps ATM, 100Vg-AnyLAN (IEEE802.12), TP-PMD
(ANSI X3T9.5), 16Mbps Token Ring (IEEE802.5)
Industry Standards: ANSITIA/EIA 568-B.2, EN50173,
EN50288-3-1, ISO/IEC11801

Standard Compliances
1  All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/
IEC, and CENELEC EN Standards:
2 ANSI/TIA/EIA 568-B.2 CAT.5e
3   2nd Edition ISO/IEC 11801 Class D
4  CENELEC EN 50173-1
5  IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
6  Flame Retardancy is Verified According to IEC 60332-1

 QISHENG PRODUCTS:

*Coaxial Cable:

RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.

RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,

CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,

5C-2V, 7C-2V,3D-2V, 5D-2V,  3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.

*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.

*Electric Wire

*Speaker Cable

*Control Cable

*Combined Cable

*Patch cord

Note:Customized specifications are also welcome
