Home > Products > Lan cable network cable > hot sell high quality competitive price cat5 utp 4 pairs cable

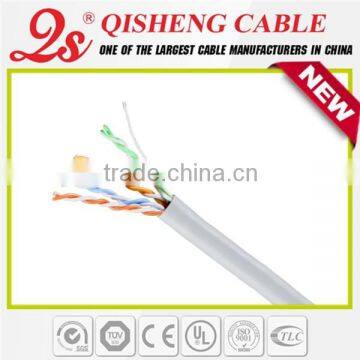

hot sell high quality competitive price cat5 utp 4 pairs cable

FOB Price

USD $19.44 - $28.17 / Box

100 Boxes(Min.Order)

Supply Ability 4000 Box / Boxes per Month
Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	QS/OEM
Model Number	CAT5E, CAT6	Type	Cat 5e
Number of Conductors	8

Product Description

hot sell high quality competitive price cat5 utp 4 pairs cable

Product Construction

CAT5E

CAT6

Product Description

Part Number		CAT5E UTP
Conducor	Diameter	24AWG/0.51±0.01
	Material	Bare Copper/CCA
	Type	Solid or Stranded
Dielectric(Insulation)	Diameter	0.91 ± 0.01
	Material	HDPE
Shielding	Material	Al-Foil
	Coverage	-
Jacket(Sheath)	Diameter	5.1 ± 0.1
	Material	Flame retardant PVC+LDPE
Colors	Pair 1:Blue,White/Blue
	Pair 2:Orange,White/Orange
	Pair 3:Green,White/Green
	Pair 4:Brown,White/Brown
Number of Pairs	4Pairs
Weight(kgs/km)	30
Attenuation(10MHz dB/100m)	6.5
NEXT (100MHz dB/100m)	≥35.3
ELFEXT (100MHz dB/100m)	≥23.8
RL (100MHz dB/100m)	≥20.1
Impedance (ohms)	100
Operating Temperature Range(℃)	-20 to 75
Package	305m easy pull box, 2boxes in 1carton

Messenger cable: 0.8mm steel with pvc/pe jacket

Electrical Performance
1 Low Frequency
2 Dielectric Strength:2.5kVdc-2 second

3 DC Loop Resistance:Max 19ohm/100m
4 Resistance Unbalance:Max 2%
5 Insulation Resistance:Min 500 Mohm-km@100-500Vt
6 Capacitance Unbalance(pair to ground):Max1600pF/100m

Electrical Characteristic:

1.0-100.0MHz Impedance (ohms): 100 ohm+/- 15 ohm

1.0-350.0MHz Delay Skew (ns/100m): <=45

Pair-to-Ground Capacitance Unbalance (pF/100m): <=330

Max. Conductor DC Resistance 20oc(ohms/km): 6.58

Products Description
ISDN, 10BASE-T (IEEE802.3), 100BASE-T (IEEE802.3),
155 Mbps ATM, 100Vg-AnyLAN (IEEE802.12), TP-PMD
(ANSI X3T9.5), 16Mbps Token Ring (IEEE802.5)
Industry Standards: ANSITIA/EIA 568-B.2, EN50173,
EN50288-3-1, ISO/IEC11801

Standard Compliances
1 All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/
IEC, and CENELEC EN Standards:
2 ANSI/TIA/EIA 568-B.2 CAT.5e
3 2nd Edition ISO/IEC 11801 Class D
4 CENELEC EN 50173-1
5 IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
6 Flame Retardancy is Verified According to IEC 60332-1

Electrical Characteristics
Frequeney	Impedance ohm	RL dB	Attenuation dB/100m	Next dB	Elfext dB	Psnext dB	Delay Ns/100m
0.772	100+/-15	19.4	1.8	67.0	64.0	66.0	574
1.0		20.0	2.0	65.3	62.3	63.8	570
4.0		23.0	4.1	56.3	53.3	51.7	552
8.0		24.5	5.8	51.8	48.8	45.7	546
10.0		25.0	6.5	50.3	47.3	43.8	545
16.0		25.0	8.2	47.3	44.3	39.7	543
20.0		2.0	9.3	45.8	42.8	37.7	542
25.0		24.3	10.4	44.3	41.3	35.8	541
31.3		23.6	11.7	42.9	39.9	33.9	540
62.5		21.5	17.0	38.4	35.4	27.8	538
100.0		20.1	22.0	35.3	32.3	23.8	537

Application

Packaging & Shipping

Product line

Shipping

Certificates

Courier Services

Payment Term

FAQ

Q1:Are you a trading company or manufacture?
A1:QS cable is a professional manufacture,not a trading company,Thus,we can control your order from the first begining to the last.

Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after PO confirmation,but every inquiry will be based on the quantity.

Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20M,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4:Usally we require advanced payment,and the balance before shipment,but every inquiry will be quoted taking client,orders and other factors into consideration

Q5:What is your commerial item?
A5:Usually we adopt FOB Ningbo/Shanghai,CIF,CFR and others.
