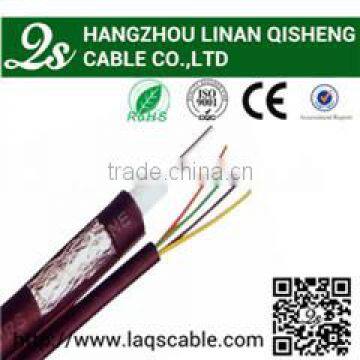

coaxial cable RG-6 CU Telephone Cable or UTP Cat 5E(NON-UL)
- 30000 Kilometer / Kilometers per Month
- Ningbo/Shanghai
You May Like
-
coaxial cable rg59,(75-4)rg6(75-5),rg58(75-3)
-
RG-6 CU Telephone Cable or UTP Cat 5E(NON-UL)coaxial cable
-
china manufacturer vga Coaxial cable 75-5 ,75-3 rg59
-
China manufacturer Coaxial cable rg6 vga(75-5)( CE ISO RoHS ETL SGS approved )
-
rg6 75ohms rg8 50ohms Coaxial Cable lan cable network cable
-
High Quality CCTV Coaxial Cable RG59 +2C/RG59 Siamese With Power Security Cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | QS/OEM | |
| Model Number | RG6 | Type | Coaxial | |
| Application | Multimedia | Packing | Carton Box | |
| Connector Color | Other, silver | Connector Type | F | |
| Shielding | Combination | Color | Other, according to custmor |
Product Description
Specifications
1.CE ISO RoHS SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Price
RG6 COAXIAL CABLE
1)Construction
| Inner Conductor: | 1.02±0.01mm CCS |
| Insulation: | 4.80±0.05mm Foam PE |
| Shield: | Al Foil/Bonded Al Foil |
| Braid Coverage: | 40%-95%Al-Mg/CCA |
| Jacket: | 7.00±0.05mm PVC |
| Jelly/APD | Per Customers Special Requirement |
2)Characteristics
| Sparker Test: | 4000VAC |
| Impedance: | 75±3 Ohm |
| Capacitance: | 50±3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300Mhz) |
3)Attenuation:
| Attenuation | [@68°F.(20°C.)] | |
| Frequency(Mhz) | Maximum (dB/100 ft.) | Maximum (dB/100m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
