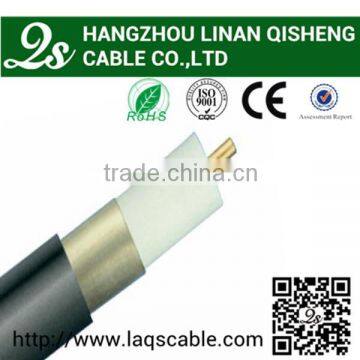

HD CCTV camera cable CATV RG11-M (RG11 with messenger) Coaxial cable

Specifications

Standard Specification :

1.63mm CCS + 7.11mm FPE + AL/ pet Foil bonded + 96*0.16mm Al Braiding( 60% coverage) +10.03mm PVC+1.83mm steel

Electrical Characteristics :

1) Characteristics Impedance: 75+/- 3 Ohms

2) Capacitance Conductor to Shield: 53.1 pF/m

3) Velocity of Propagation : 82%

4) Delay: 4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) : 20 dB

6) Max. Attenuation :

Application :

1. Coaxial cable for CATV,CCTV systems

2. For satellite systems

  shipping

 Our products

 we also have other products for you reference  :

Coaxial Cable:

RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.

RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,

CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,

5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.

*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.

*Electric Wire

*Speaker Cable

*Control Cable

*Combined Cable

*Patch cord
