6kVA UPS system

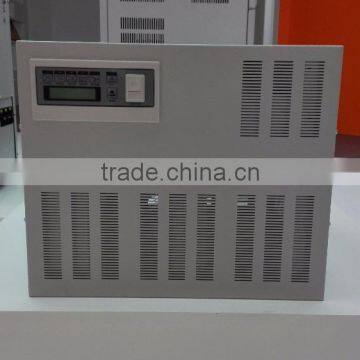

AVIC-TECH  6kVA  Single Phase Online UPS

Model

AHA-603T-LX

Input

AC Voltage

230VAC

AC Input Range

+-25%

Frequency

60Hz ± 5Hz

DC

Rated Battery Voltage

DC192V

Charging Current

Standard 5A, other current values are optional

Output

Rated Capacity

6kVA

Output Voltage & Accuracy

1P2W 110VAC ± 1%

Frequency & Accuracy

60Hz ± 0.1%

Waveform Distortion

Sine wave, 100% linear load harmonic distortion < 3%

Power Factor

0.8

Crest Factor

3:1

Conversion Time

0 ms

Protection

Battery

Shutdown automatically if battery voltage low, breaker protection

Overload

120% - 150% over 60 seconds will be switched to bypass power supply, automatic recovery at lower load

Short Circuit

Limit current automatic shutdown, fuse & breaker

Failure

Failure or internal overheat, switch to bypass operation, alarm

Electromagnetic Disturbance /Compatibility

EN50091-2 approved (optional filter)

Display

LCD Display

English display panel, logo, UPS condition, input/output voltage, battery voltage, load ratio, history information

LED Display

Electricity, output, battery, bypass, overload, failure

Alarm

Abnormal Electricity

Beep every 4 seconds, mute automatically after 90 seconds

No Battery Input Or Battery Power Runs Out

Beep every 1 second until shutdown

Overload

Beep continuously

System Failure

Beep continuously

Communication

RS232 or RS485 (optional), support RUPSII UPS/UPSilon 2000 Monitoring Software/MODBUS (optional) NetAgent fix IP internet monitoring software/5 groups of switch alarm connection

Environment

Operating Temperature

-5 °C ~ +40 °C (23 °F 0 ~ 104 °F)

Relative Humidity

0 ~ 95% no condensate

Noise Level

< 50dB less than 1m from source

Dimension

Tower   WxDxH(mm)

240 x 580 x 575

Weight (kg)

65
