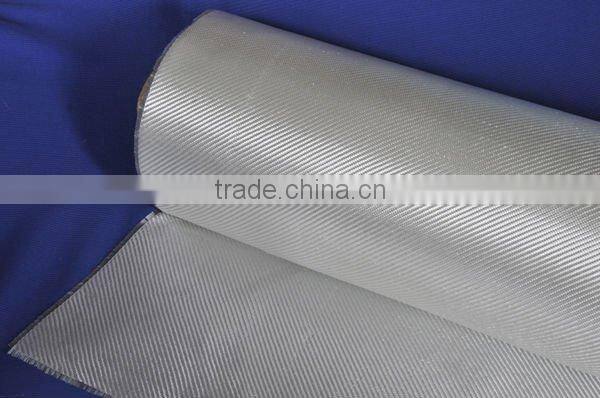

For Industry Multi-axial Fiberglass Fabrics
- Shanghai
- T/T
You May Like
-
Unidirectional Fabric (GL Certificated) for Manufacturing Tanks, Pipes, Etc.
-
Needled Combination Fiberglass Mats (GL Certificated)
-
Needled Combination Fiberglass Mat for Bathroom Products Making (GL Certificated)
-
Fiberglass Fabric, Sport Apparatus Making (GL Certificated)
-
Double Bias Warp-knitted (0 and 90 Degree) Fiberglass Fabrics (GL Certificated)
-
227 Gsm Weft (0 Degree) Unidirectional Fabric Used in FRP Pipes (GL Certificated)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Ding | |
| Model Number | EB300(0/90),EB600(0/90),EU400(45/-45),etc. | Weight | 50 kg (Roll Weight) | |
| Width | normally 127cm in width | Weave Type | Plain Woven | |
| Yarn Type | E-Glass | Alkali Content | Alkali Free | |
Product Description
Specifications
1. Listed company2. Obtains the CE,UL,ISO9000,ABS certificate,etc.
3. Properties: High Tensile Strength and Quick Wet out
1. Listed company
2. Obtains the CE,UL,ISO9000,ABS certificate,etc.
3. Properties:
- High Tensile Strength and Quick Wet out
- Perfect designable character
- Stability
- Stiffness
4. Our machines are imported from Karl Mayer, Germany.
Products Specifications
Biaxial and Multiaxial Fabric
Style | Mass (g/m2) | Mass (oz/yd2) | Roll length (m) | Width (cm) | Roll Weight (kg) | Resin Compatibility |
EB450(0/90) | 450 | 13.3 | 87 | 127 | 50 | UP or Epoxy Resin |
EB600(0/90) | 600 | 17.7 | 65 | 127 | 50 | UP or Epoxy Resin |
EB900(0/90) | 900 | 26.6 | 35 | 127 | 50 | UP or Epoxy Resin |
EU400(45/-45) | 400 | 11.8 | 98 | 127 | 50 | UP or Epoxy Resin |
EU800(45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETW750(45/-45/90) | 750 | 22.1 | 52 | 127 | 50 | UP or Epoxy Resin |
ETW1200(45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
ETL800(0/45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETL1200(0/45/-45) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
EMU900(0/45/-45/90) | 900 | 26.5 | 44 | 127 | 50 | UP or Epoxy Resin |
EMU1200(0/45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
Used in: boats, wind power, basic facilities, sports apparatus, as well as the general industries.
2. Applications
We also manufacture other industrial fabric, welcome you to select:

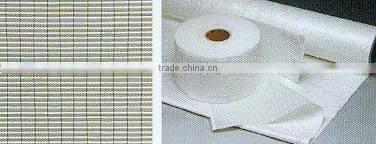

No. | Products Name | Picture | Application |
1 | Woven roving | | Hand lay-up of large, high-strength FRP products such as boats, automobile parts |
2 | Unidirectional fabric |
| FRP pipe, FRP tank, vane of wind generator,bridge,pillar’s reinforcement |
3 | Needled Combination Mat | | Hand Lay up, pultrusion, winding, RTM,Hot/Cold press moulding, Pressure Bag moulding etc. |
