Home > Products > Industrial fabrics > Multiaxial Fiberglass Fabrics

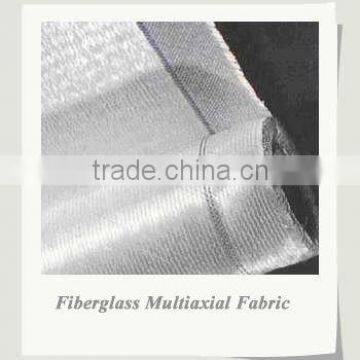

Multiaxial Fiberglass Fabrics
- SHANGHAI CHINA
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Ding | |
| Model Number | ETW, ETL, EB, EU, EMU | Application | Wall/Roof covering Cloth | |
| Weight | 8.9 oz/yd2 - 44.5 oz/yd2 | Width | General Specification: 127cm | |
| Weave Type | Plain Woven | Yarn Type | E-Glass | |
| Alkali Content | Alkali Free |
Product Description
Specifications
1.pass GL certificate2.listed company
3.one of the fastest growing materials in composite industry
Multiaxial reinforcement is one of the fastest growing materials in composite industry at present and has found wide use in marine, wind energy, infrastructure, sports goods and industrial applications.
1. Products Specifications
Biaxial and Multiaxial Fabric
Style | Mass (g/m2) | Mass (oz/yd2) | Roll length (m) | Width (cm) | Roll Weight (kg) | Resin Compatibility |
EB450(0/90) | 450 | 13.3 | 87 | 127 | 50 | UP or Epoxy Resin |
EB600(0/90) | 600 | 17.7 | 65 | 127 | 50 | UP or Epoxy Resin |
EB900(0/90) | 900 | 26.6 | 35 | 127 | 50 | UP or Epoxy Resin |
EU400(45/-45) | 400 | 11.8 | 98 | 127 | 50 | UP or Epoxy Resin |
EU800(45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETW750(45/-45/90) | 750 | 22.1 | 52 | 127 | 50 | UP or Epoxy Resin |
ETW1200(45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
ETL800(0/45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETL1200(0/45/-45) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
EMU900(0/45/-45/90) | 900 | 26.5 | 44 | 127 | 50 | UP or Epoxy Resin |
EMU1200(0/45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |

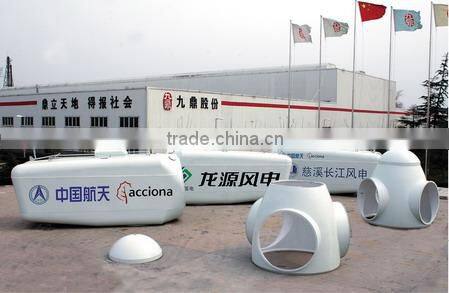

Used in: boats, wind power, basic facilities, sports apparatus, as well as the general industries.
2. Applications
Contact Us
- Jiangsu Jiuding New Material Co., Ltd.
- Contact nameyinhu zhou Chat Now
- Phone86-513-80695069
- Address1 Zhongshan Road, Nantong, Jiangsu
