waste engine oil recycling machine waste oil recycling unit recycle oil machine

1, All the equipment are certified by CE and ISO

2, Latest double vertical tubular condensers, 56 cooling pipes in each condenser, more cooling area, more effective cooling effect, higher oil yield

3, Equipped with safety valves, auto alarming system, anti-explosion valve, which will guarantee 100% safety

4, Flue tube condenser, cool down the exhaust gas from the burner, protect draft fan and improve dedusting effects

5, Adopts Three-layer dedusting system to cleanse the exhaust gas to reach European pollution control standards.

6, Automatic submerged welding technology, ultrasonic nondestructive testing, guarantee the equipment quality

7, Oil pump feeding and discharging, save much manpower

Specifications:

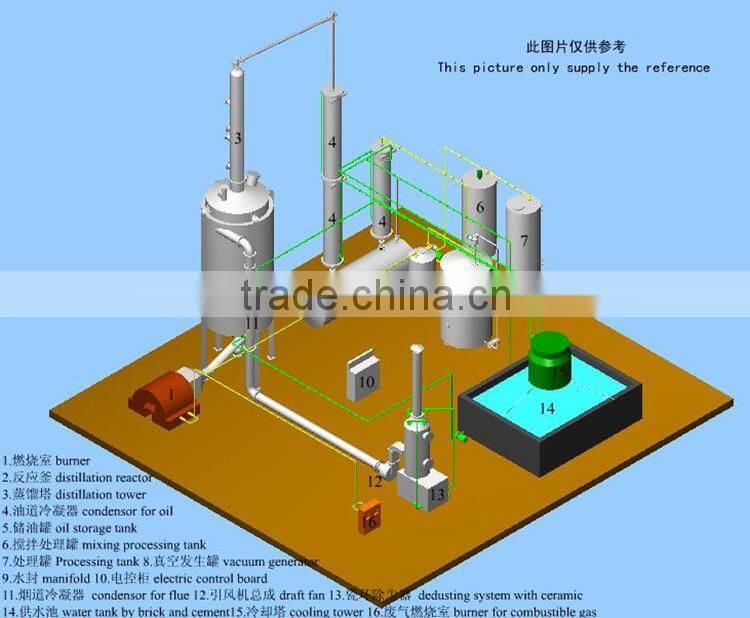

3D layout

Flow chart

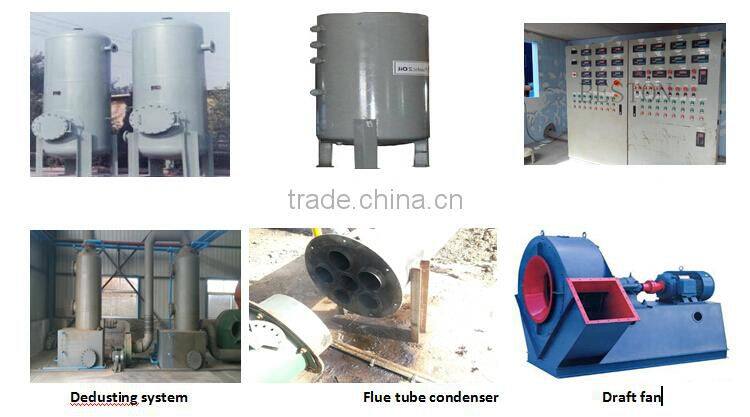

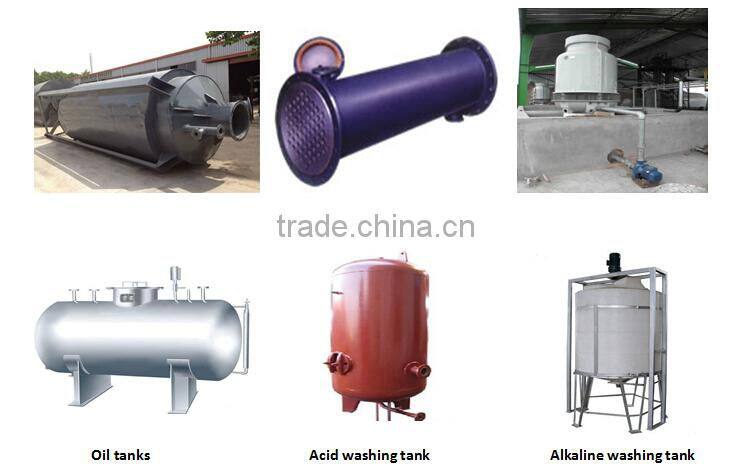

Main parts of recycle oil machine

Certifications:

Total production consumption

* Power: 35 KW/H in total (but it is not every device start at the same time).

* Cooling circuit water: 50 M3/H in total (the water can be recirculated and the more the water  flow, the better the cooling down).

*  Fuel for heating:

      1 ton raw material needs 50- 60KG coal as fuel.

      1 ton raw material needs 40 m3 natural gas

      1 ton raw material needs 30-40 KG diesel as fuel.

* Space for machine: 450 square meters (L 30m*W 15m*H 10m).

* Worker shift: 4 to 6 workers which can be divided by two groups.

* Floor required: 15 cm cement floor, with bearing capacity 20 tons.

1*40HC + 1* FR  are needed for JL-1 recycle oil machine

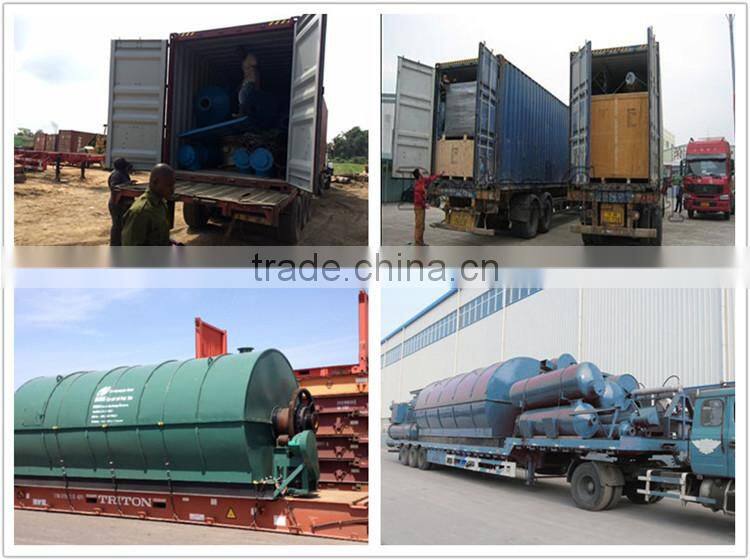

40 working days for delivery after first payment.

* Delivery time- It will be 40 days after we receive the deposit.

* Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your workers. We will provide free service for one month, after that, you have to pay extra salary for the technician with the price of RMB 400.00 per day (equals USD 64.00 per day). And the round tickets and accommodation shall be taken by customer.

* The Warranty of complete equipments is 1 year, and lifetime technical support.

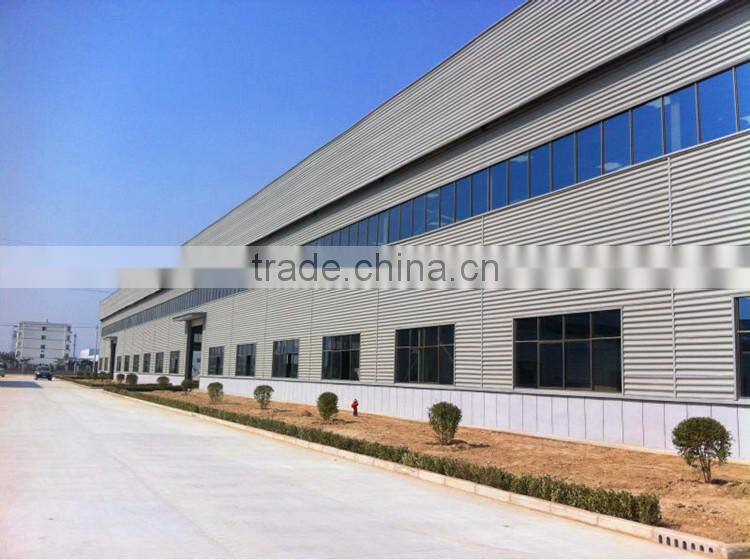

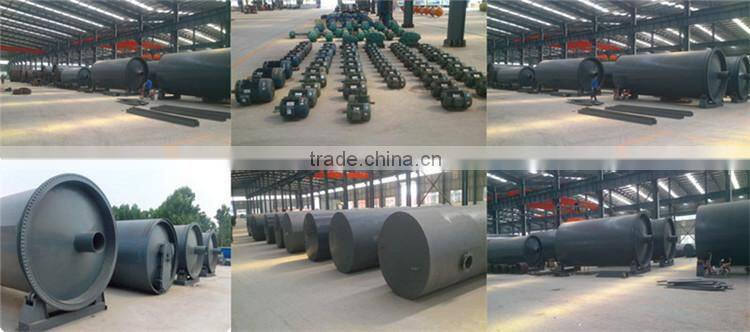

 Porduct line show :

Our factory not only supply recycle oil machine but also waste tyre pyrolysis machine and carbon black processing machine Warmly Welcome to visit us !
