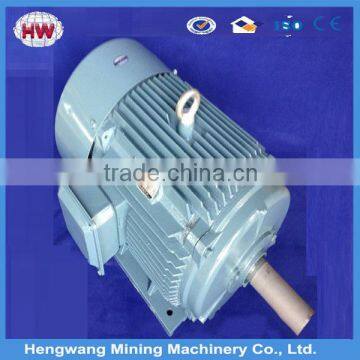

Low voltage three phase asynchronous electric motor

Low voltage electric motor

Features:

1)Power:0.75kw

2)Three-phase

3)Rared frequency:50hz

4)Output power (0.75kw--30kw)

Y seris three phase asynchronous electric motors are totally enclosed and fan-cooling. They are newly designed in comformity with the relevant requirements / rules of IEC&DIN42673 standards.

Y series 3 phase electric motors have the advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & conveninent  maintenance.  Fixing measurement and power grade completely comform to IEC standards.

Y series three phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. However, Y series three phase asynchronous electric motors are unsuited to be used in that place where combusbible, explosive or corrosive gas exist and other special requirements forbidden.

For the Connection Model of Y series three phase asynchronous electric motors, please refer to the Name Plate on the motor. (The Y Connection is adopted by motors' Output equal or below 3 KW; The Delta-Connection is adopted by motors' Output above 4 KW).

Specification:

1, Frame Size: 80-355 MM;

2, Rated Output: 0.75—315 KW or 1—465 HP;

3, Rated Voltage: 380 V or to be your request;

4, Rated Frenquency: 50 Hz / 60 Hz;

5, Poles: 2 / 4 / 6 / 8 / 10

6, Speed: 590 —2980 r/min

5, Model of CONEECTION: Y-Connection for 3 KW motor or less  while Delta-Connection for 4 KW motor or more;

7, Mounting:  B3; B35; B34; B14; B5;

8, Current: 1.5—465 A (AC);

9, Duty: continunous (S1); short-time duty (S2); intermittentperiodicduty-type(S3);

10, Insulation Class: B / F;

11, Protection Class: IP44 / IP54;

12, Cooling Method: ICO 141 Standard;

13, Ambient Temperature: -15°C—40°C

14, Altitude: No more than 1,000 meters above sea level;

15, Packing: Seaworthy Wooden Crate Package
