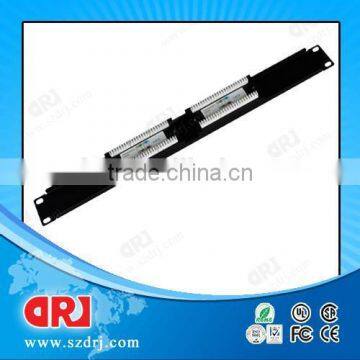

Cat6 UTP 12 ports systimax patch panel

Specifications

      Cat6 UTP 12 ports systimax patch panel

cat6 Main Distribution Frame  Discription:

1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.

2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.

3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.

Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Electrical:
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" Gold plating on contact area.

.

Shippment, we support By Sea,By air,By Express: DHL ,Fedex, UPS, etc

Dear Customer:

Thank you for using our DRJ network products, if you have the using and services experience problems,

please give us time to reflect, we will quickly reflected properly resolve your problem,

the quality of our products and services level of sustained improvement and upgrading,

DRJ Always provide a little "value-added" service at no charge. This can include one or two phone consultations,

an e-mail follow-up or a "special report" that you mail after the project is completed.

Thank you for your support!

1. What are the basic concept of integrated wiring system  ?

It is a set of integrated wiring system used for buildings or buildings for computer, communication facilities and monitoring system between the preset information transmission channel.It will voice, data, images and other devices connected to one another, at the same time can make the equipment connected to external communication data network.

2.Is OEM or private packing available?

                YES!!
