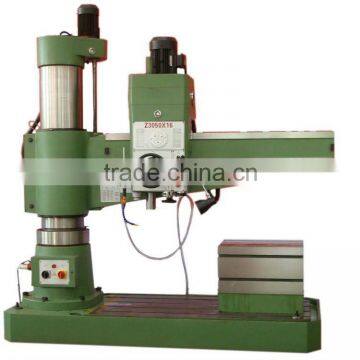

Hydraulic Radial Drilling Machine
- 58 Set / Sets per Month
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Shandong, China | Brand Name | HELI | |
| Model Number | Z3050X16 |
Product Description
Specifications
1.hydraulic-driver transmission structure2.high precise and stable
3.more durable
The Hydraulic Radial Drilling Machine Model Z3050×16, which has a wide range of application, are suitable for drilling, counter-boring, reaming, spot-facing and tapping on large and medium size object.
Features:
1.It has many strong points as follows: The key parts were adopted high strength cast iron and special steel, this make it has more stability.
2. It is more durable because it is processed through first-class technic.
3. After the continuous treating by specialized equipment, it guarantees the basic parts have excellent quality.
4. The hydraulic pressure system tightens each part greatly.
5. 16 range of spindle turning speed for your choice makes it drilling highly effectively.
6. All the hydraulic control equipments concentrate in the headstock, which facilitates the operation greatly.
The detailed specifications:
SPECIFICATION | UNIT | Z3050 x 16 |
Max. drilling diameter | mm | 50 |
Distance between spindle nose and working surface of base plate | mm | 250-1150 |
Distance between spindle centerline and column generatrix | mm | 500-1600 |
Spindle travel | mm | 300 |
Spindle taper(Morse No.) | --- | 5 |
Range of spindle speeds | r.p.m | 25-1400 |
Number of spindle speeds | --- | 16 |
Range of spindle feeds | mm/r | 0.10-0.40 |
Number of spindle feeds | --- | 16 |
Swivel angle of the rocker | ° | 360 |
Main motor power | kw | 4 |
Motor power for up&down | kw | 1.5 |
N.W/G.W | kg | 3000/3500 |
Overall dimensions(L*W*H) | mm | 2200*900*2550 |
