Home > Products > Radial Drilling Machine > Radial Drilling Machine Z3063X20

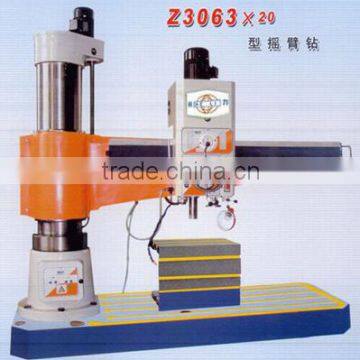

Radial Drilling Machine Z3063X20

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	Z3063X20
Voltage	380V	Rated Power	5.5KW
Dimension(LWH)	300012002400MM	Weight	6500KG
Certification	CE	Warranty	12 months
After-sales Service Provided	Overseas service center available

Configuration features
1.Hydraulic clamping
2.Hydraulic speed change
3.Hydraulic pre-selection

Z3063X20 main technical data

SPECIFICATION	UNIT	Z3063 x 20
Max. drilling diameter	mm	Cast iron 63
Distance between spindle nose and working surface of base plate	mm	400-1150
Distance between spindle centerline and column generatrix	mm	500-2000
Spindle travel	mm	350
Range of spindle speeds	r.p.m	25-1100
Number of spindle speeds	---	12
Range of spindle feeds	mm/r	0.06-0.53
Number of spindle feeds	---	8
Swivel angle of the rocker	°	360
Main motor power	kw	5.5
Net weight	kg	6500
Overall dimensions(LWH)	mm	300012002400

After-sale Service:

1.Technical support online service provided.

2.Technical files service provided.

3.On-site training service provided.

4.Spare parts replacement and repair service provided.

5.All of the questions will be replied within 24 hours.
