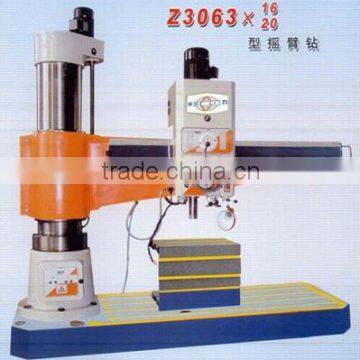

Hydraulic Radial Drill Z3063X20

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 56 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Place of Origin	Shandong, China	Brand Name	HELI
Model Number	Z3063X20

Product Description

Specifications

1.Economic and wide range of application
2.More stability
3.More durable
4.Excellent quality
5.Highly effectively

The Radial Drilling Machine Model Z3063×16, which has a wide range of application, are suitable for drilling, counter-boring, reaming, spot-facing and tapping on large and medium size object. It has many strong points as follows: The key parts were adopted high strength cast iron and special steel, this make it has more stability. It is more durable because it is processed through first-class technic. After the continuous treating by specialized equipment, it guarantees the basic parts have excellent quality. The hydraulic pressure system tightens each part greatly. 16 range of spindle turning speed for your choice makes it drilling highly effectively. All the hydraulic control equipments concentrate in the headstock, which facilitates the operation greatly. Novel design of outward appearance and painting demonstrate the time style.

Specifications	Z3063×20
Max.diameter to drill(cast iron)	63mm
Distance from the spindle Axis to the column surface	Maximum 2000mm Minimum 380mm
Max.travel of headstock	1620mm
Distance from the spindle end face to Worktable surface	Maximum 1500mm Minimum 280mm
Taper hole in spindle	Morse NO.5
lifting speed of arm	0.02m/s
Max.travel of arm on column	800mm
Max.travel of spindle	415mm
Spindle travel per circle of dial	151mm
Spindle speed range	25-1350 r/min
Spindle speed numbers	16
Spindle feeding range	0.04-3.2 mm/r
Spindle feeding numbers	16
Max. torque of spindle	500 N.M
Max. feeding resistance	21500 N
Main motor power	5.5kw
Arm lifting motor power	1.5kw
Hydraulic pressure clamp motor	0.75kw
Cooling pump motor	0.125kw
Net Weight (approx)	4600kg
Overall dimensions	2920×1250×2940 mm
