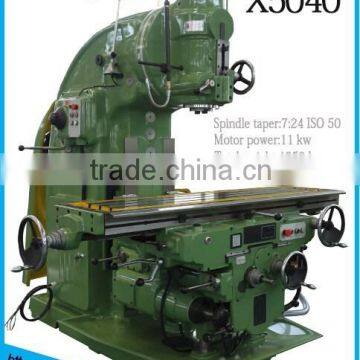

Conventional Milling Machine X5040 With CE Approved
- 40 Set / Sets per Month
- QINGDAO/GUANGZHOU/TIANJIN/SHANGHAI/NINGBO
- Credit Card
You May Like
-
Professional Higher Precision Vertical Milling Machine X5040
-
Universal Milling Machine X6332C
-
Universal Radial Milling Machine X6332C
-
Vertical And Horizontal Turret Milling Machine X6332C
-
turret head milling machine,universal milling drilling machine,radial milling machine X6332C
-
Universal swing arm radial Milling Machine X6332C
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | X5040 | |
| Type | Vertical | CNC or Not | Normal | |
| Voltage | 380V/440V/480V | Power(W) | 11000 | |
| Dimension(L*W*H) | 2556 x 2159 x 2258 | Weight | 4250 | |
| Certification | ISO CE EAC | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
X5040 Vertical Knee Type Milling Machine, has extra travel in longitudinal, operating control adopts a cantilever panel. It is suit for milling flat, inclined face, angular surface, slots by employing disc cutters, angular cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ± 45° . Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Main specification | X5032 | X5040 | |
Table size | 320 x 1325 mm | 400 x 1700 mm | |
Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 | |
Spindle bore | 29 mm | 29 mm | |
Distance from spindle nose to table surface | 60-410 mm | 30-500 mm | |
Distance from spindle axis to bed vertical guideway surface | 350 mm | 450 mm | |
T-slot(number/width/spacing) | 3/18/70 | 3/18/90 | |
Table max. longitudinal travel manual/automatic | 700/680 mm | 900/880 mm | |
Table max. cross travel manual/automatic | 255/240 mm | 315/300 mm | |
Table max. vertical travel manual/automatic | 350/330 mm | 385/365 mm | |
Table rapid speed longitudinal/cross/vertical | 2300/1540/770 mm/min | 2300/1540/770 mm/min | |
Max. turning angle of vertical milling head | ±45° | ±45° | |
Spindle travel | 70 mm | 85 mm | |
Number of spindle speed | 18(steps) | 18(steps) | |
Spindle speed range | 30~1500 r.p.m | 30~1500 r.p.m | |
Number of table feed | 18(steps) | 18(steps) | |
Main motor power | 7.5 KW | 11 KW | |
Feed motor power | 2.2 KW | 3 KW | |
Overall dimension | 2294 x 1770 x 1904 | 2556×2159×2258 | |
Net weight/Gross weight | 2900 kg/3200kg | 4250 KG/4350KG | |
Machine model: X5040 vertical knee type milling machine
Type of package: Plywood case
Packing dimension: 2556X2159X2258mm (one set in one case) N.W./G.W.: 4250/4350KGS
Suitable Container and quantity:
20' Standard Container: 2 sets
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
- Technical support online service provided .
- Technical files service provided.
- Machine operation video provided
- On-site training service provided.
- Spare parts replacement and repair service provided.
- All of the questions will be replied within 24 hours
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
