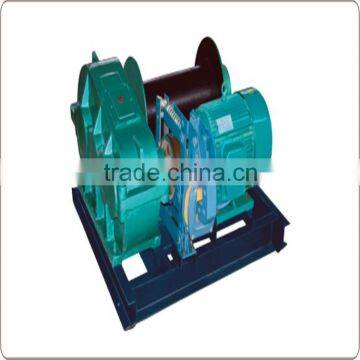

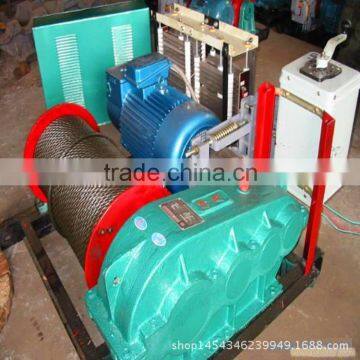

China-made JD Dispatching Winch for Mine Field
US$ 1,000 - 4,000
/ Piece
1 Piece(Min. Order)
- SHANGHAI QINGDAO DALIAN
- Credit Card
You May Like
-
2016factory Direct Sale Undergroud Dispatching Winch10-40KN Mining Scheduling Winch
-
Most Competitive JD Series Dispatching Winch/mini Hand Winch With Factory Price
-
6T 18T 24T Hand Cargo Trolley/Small Tank Trolley With Alloy Steel or PU Wheel
-
6T 18T 24T Turn Small Tanks/turnable Cargo Truck/Cargo Trolley With Durable Quality
-
2015 Durable Small Tank/Cargo Pallet Trolley Quality Choice
-
2015 Durable Small Tank Carry Transport Trolley
Product Details
| Place of Origin | Shandong, China | Brand Name | HW | |
| Model Number | JD | Power Source | Electric | |
| Application | Auto | Capacity | 5~650KN |
Product Description
China-made JD Dispatching Winch for Mine Field
Product Description
1.JD Dispatching Winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.
2.JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.
3.JD Dispatching Winch are used plantary gear drive, have following features:compact structure, good rigidity, high efficiency, conveniency for installing and moving, flexible operation, smooth braking, low noise.
Parameter
| Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
| Traction Force KN | 7.5 | 7.5 | 10 | 17.6 | 30 |
| Average Speed m/s | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
| Dia of Wire Rope mm | 9.3 | 9.3 | 12.5 | 15 | 20 |
| Drum Size mm | 200×300 | 200×300 | 224×304 | 310×400 | 620×580 |
| Rope Capacity m | 250 | 250 | 400 | 440 | 480 |
| Total Reduction Ratio | 34.81 | 34.81 | 41 | 32.5 | 31.8 |
| Motor Type | YB132S-4-B5 | YBJ-11.4 | YBJ45-4 | YBJ40-4 | YB2-132S-4 |
| Motor Power KW | 5.5 | 11.4 | 25 | 40 | 5.5 |
| Motor Rev Rev/min | 1440 | 1460 | 1470 | 1470 | 1440 |
| Motor Voltage V | 380/660 | 380/660V | 380/660V | 380/660V | 380/660V |
| Di mention mm L×W×H | 1085×730×697 | 1085×730×697 | 1073×766×727 | 1448×1255×1260 | 1900×2350×1370 |
| Weight KG | 400 | 400 | 578 | 1370 | 2800 |
