JZ Series Coal Mine Electric Hoist Winch
- SHANGHAI QINGDAO DALIAN
- Credit Card
You May Like
-
JD-1.6/JD-0.75/JD-1/JD-0.5 Dispatching Winch for Mining Machine Windlass With Competitive Price
-
Explosion-proof Coal Mine JH Prop Drawing Pulling Hoist Winch for Mine
-
JD Series Explosion-proof Minig Dispatching Winch of Chinese Manufacture
-
Hot Sale 5T Fast Speed Dispatching Winch for Construction Sites in China
-
China-made JD Dispatching Winch for Mine Field
-
2016factory Direct Sale Undergroud Dispatching Winch10-40KN Mining Scheduling Winch
Product Details
| Place of Origin | Shandong, China | Brand Name | HW | |
| Model Number | JZ | Power Source | Electric | |
| Application | Auto | Capacity | 5~650KN |
Product Description
JZ series coal mine electric hoist winch
Product Description
JZ series electric winches are used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities.
JZ series electric winches are used to lift the commodity such as coal,ore equipment and building materials.
This equipment use electric motor as power source.The power pass through reducer to the drum.
It can be use for hanging heavy loads on surface and underground.
Parameter
Model | Steel wire most greatly static tensity KN | Drum capacity m | Steel wire fast speed m/min | Steel wire slow speed m/min | Steel wire diameter mm | Motor power KW | Motor voltage V | Machine dimention mm | Total weight KG |
JZ-5/400 | 50 | 400 | 6 | 3 | 23 | 11 | 380 | 2375*1970*1340 | 3240 |
JZ-10/600 | 100 | 600 | 6 | 3 | 31 | 22 | 380 | 3037*2570*1770 | 6250 |
JZ-10/800 | 100 | 800 | 6 | 3 | 31 | 22 | 380 | 3342*2906*1825 | 6500 |
JZ-16/800 | 160 | 800 | 6 | 3 | 40 | 37 | 380 | 3358*3200*2240 | 11480 |
JZ-16/1000 | 160 | 1000 | 6 | 3 | 40 | 37 | 380 | 3508*3200*2240 | 11700 |
JZ-16/1300 | 160 | 1300 | 6 | 3 | 40 | 37 | 380 | 3508*3286*2240 | 11900 |
JZ-25/1300 | 250 | 1300 | 6 | 3 | 52 | 45 | 380 | 3827*2623*2500 | 14678 |
JZ-40/1300 | 400 | 1300 | 6 | 3 | 65 | 75 | 380 | 4596*4218*2975 | 25000 |

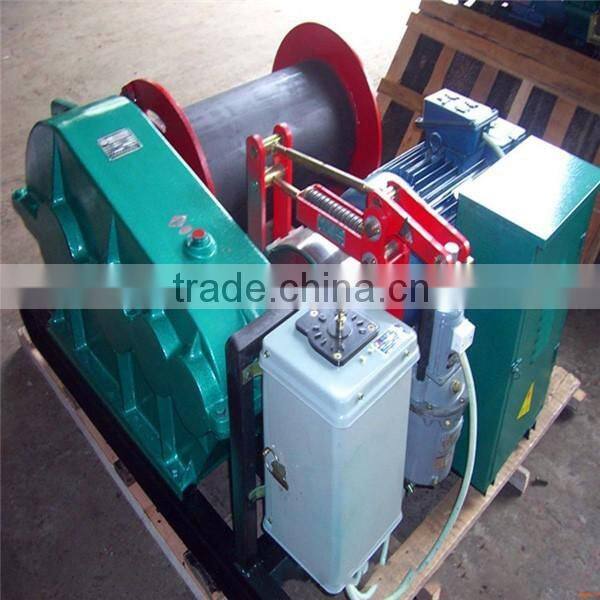

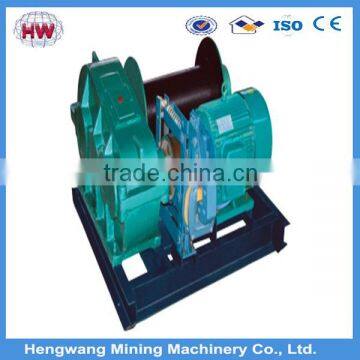

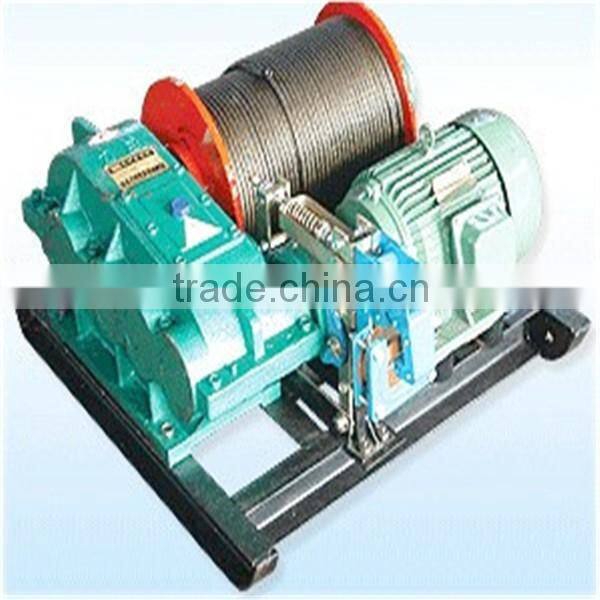

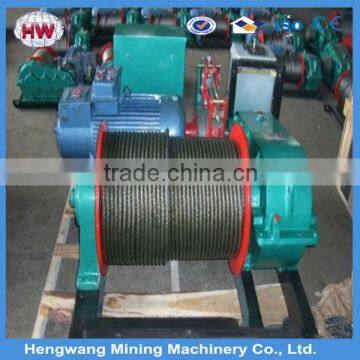

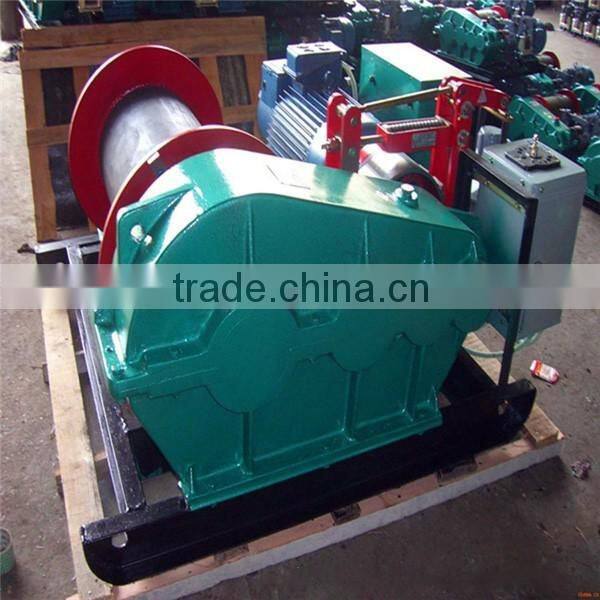

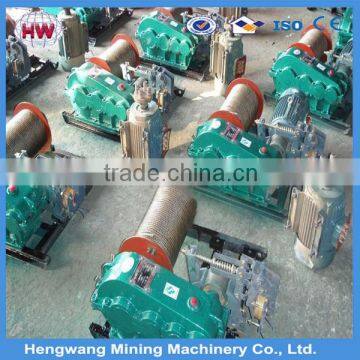

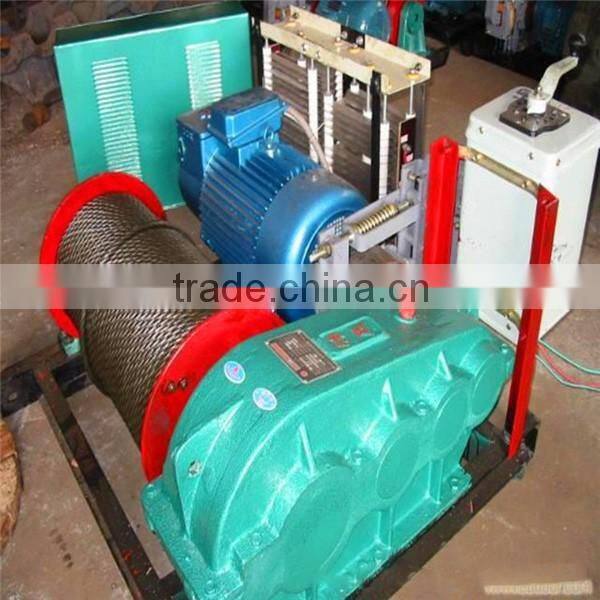

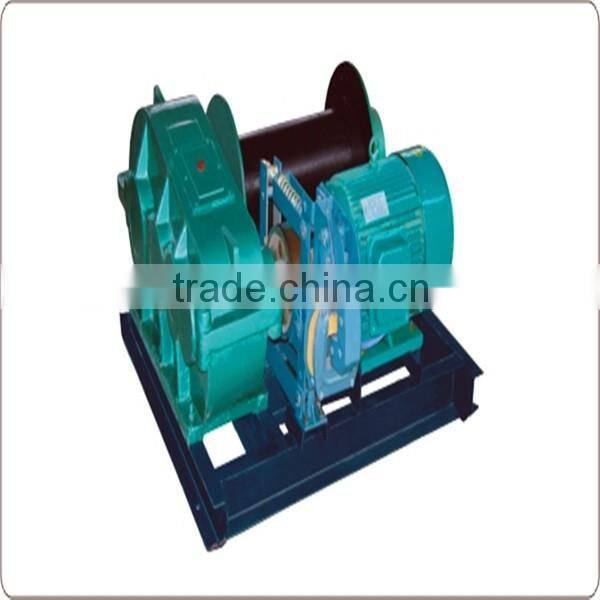

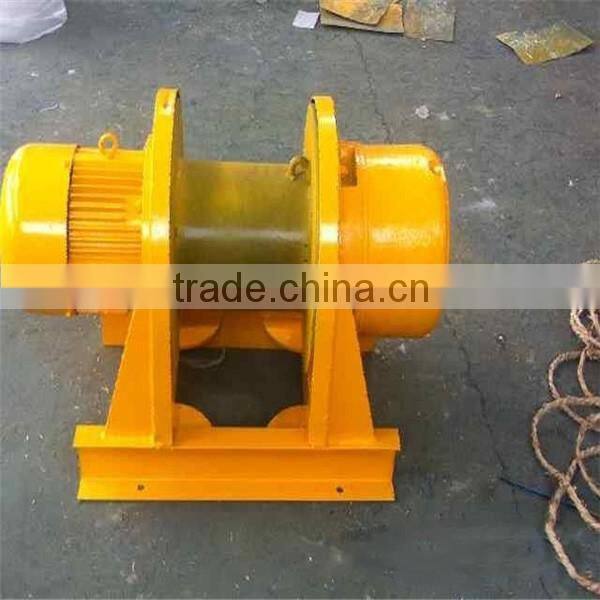

Product Show

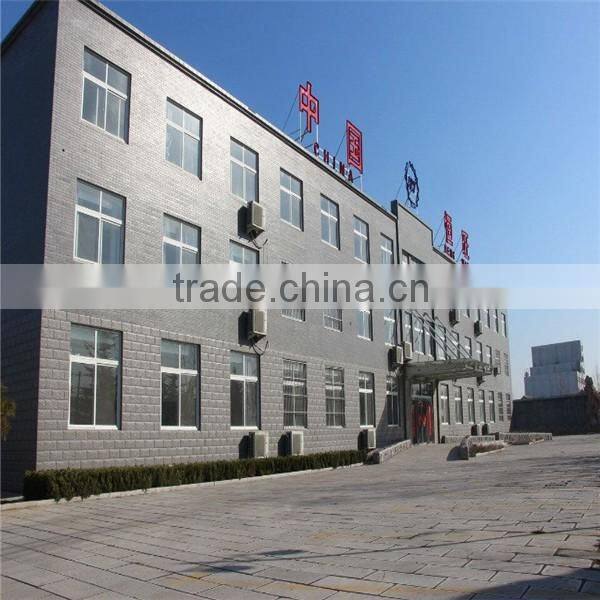

Our Service
Certificate
JZ series coal mine electric hoist winch
