TF2 4/3 Telecom Shelter Cooler / Telecom Site Products

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Ningbo / Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Xinjian
Model Number	TF2

Product Description

Specifications

Use integration case, theftproof, mothproof, rainproof, low noise, high efficiency.

One ventilation system includes 2 unit, air intake unit and air outtake unit, each unit has a control board fixed inside. Ventilation system can be turned on by manual or automatic. If want to control the work of ventilation system automatically based on temperature, a HW11A or other model controller is needed.

User can choose model based on different requirement.

Performance Indices:
Type	FTF2
Type	800	1200	1600	2400
Number of DC direct fans	2	3	4	6
Theory ventilation	800 m³/h	1200 m³/h	1600 m³/h	2400 m³/h
Install hole size	320mm*385mm	500mm*385mm	500mm*385 mm	670mm*385mm
Shutter control mode	Use DC24V motor to drive eccentric wheel and make the pole move back and forth alternately.
Rating voltage	DC42V ~ DC57V
Current of one DC direct fan	0.4A
Lifetime of shutter	More than 1 million

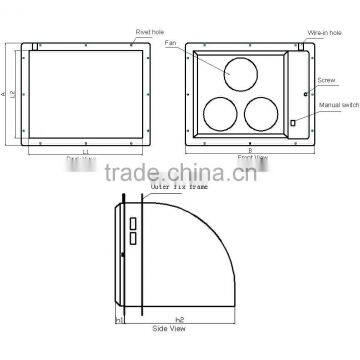

Dimension of fan unit

Model	Dimension (unit:mm)
Model	L1	L2	A	B	h1	h2
TF2-800	320	385	452	388	34	410
TF2-1200	500	385	452	568	34	410
TF2-1600	500	385	452	568	34	410
TF2-2400	670	385	452	738	34	410

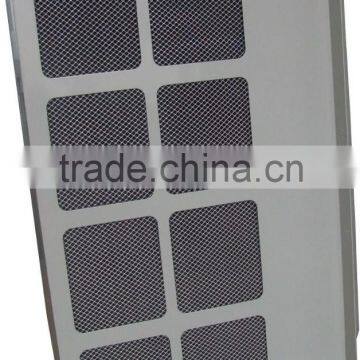

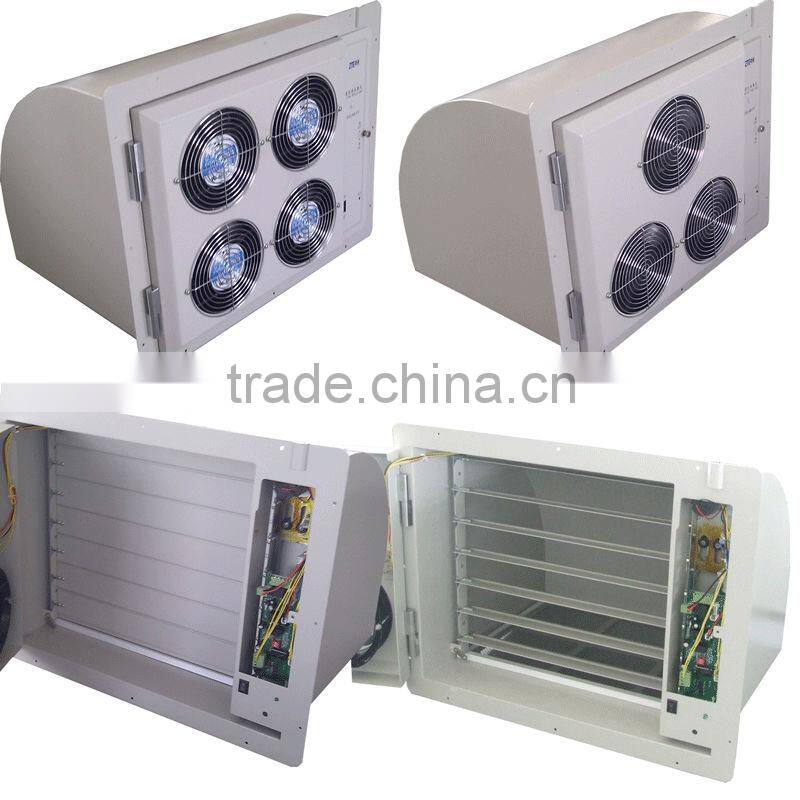

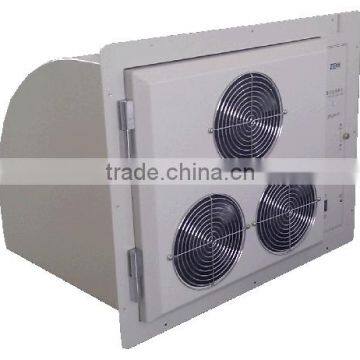

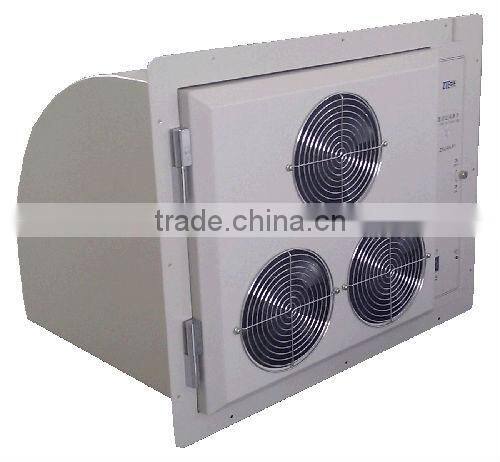

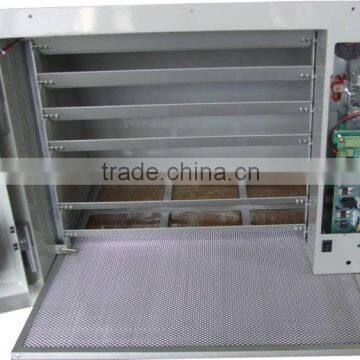

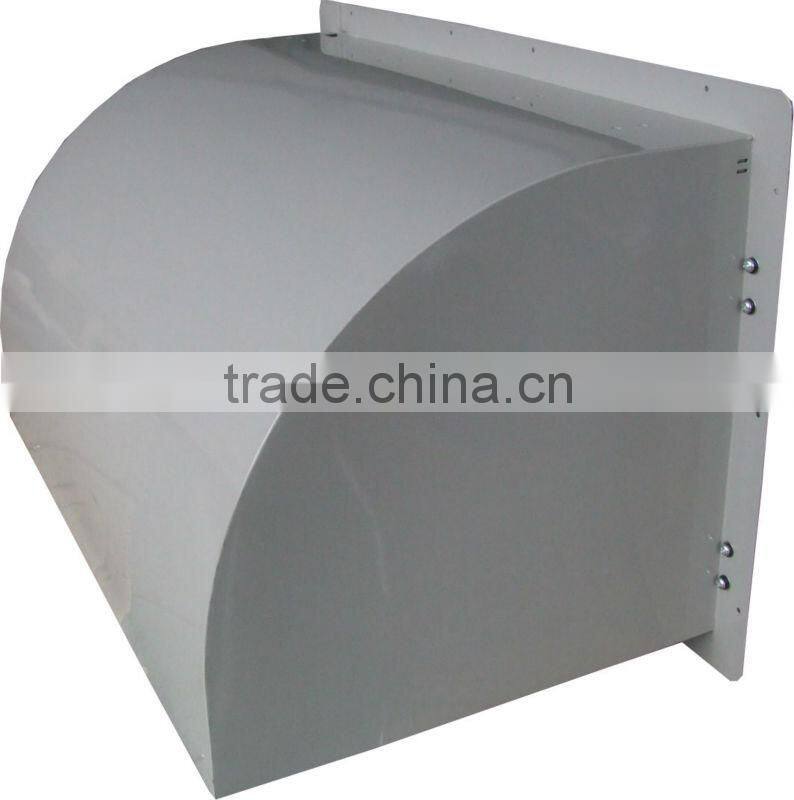

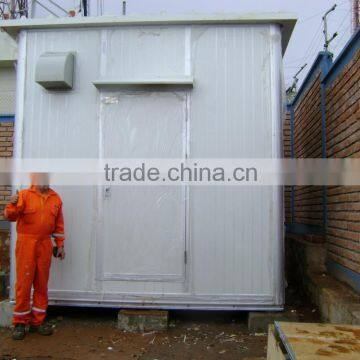

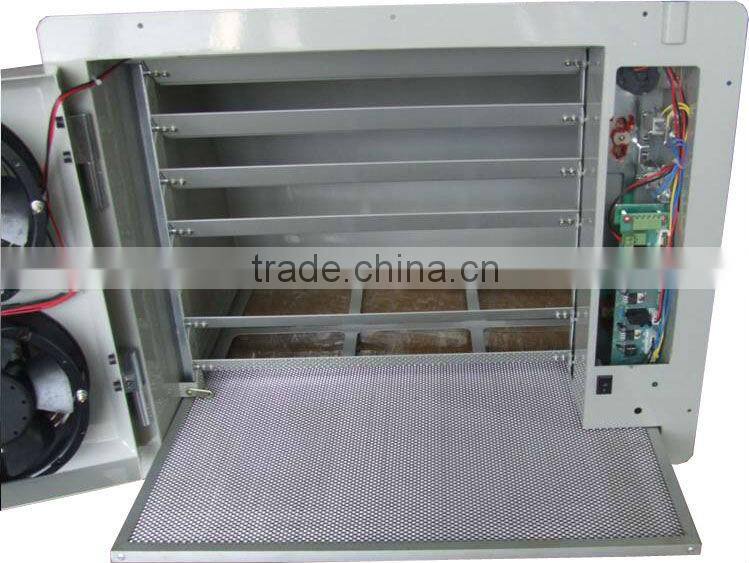

Product pictures:
