TF2 3/2 BTS Room 48V DC Cooling System

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Ningbo / Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Xinjian
Model Number	FTF2 3/2

Product Description

Specifications

Use integration case, theftproof, mothproof, rainproof, low noise, high efficiency.

One ventilation system includes 2 unit, air intake unit and air outtake unit, each unit has a control board fixed inside. Ventilation system can be turned on by manual or automatic. If want to control the work of ventilation system automatically based on temperature, a HW11A or other model controller is needed.

User can choose model based on different requirement.

Performance Indices:
Type	FTF2
Type	800	1200	1600	2400
Number of DC direct fans	2	3	4	6
Theory ventilation	800 m³/h	1200 m³/h	1600 m³/h	2400 m³/h
Install hole size	320mm*385mm	500mm*385mm	500mm*385 mm	670mm*385mm
Shutter control mode	Use DC24V motor to drive eccentric wheel and make the pole move back and forth alternately.
Rating voltage	DC42V ~ DC57V
Current of one DC direct fan	0.4A
Lifetime of shutter	More than 1 million

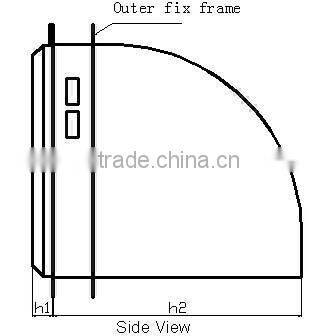

Dimension of fan unit

Model	Dimension (unit:mm)
Model	L1	L2	A	B	h1	h2
TF2-800	320	385	452	388	34	410
TF2-1200	500	385	452	568	34	410
TF2-1600	500	385	452	568	34	410
TF2-2400	670	385	452	738	34	410

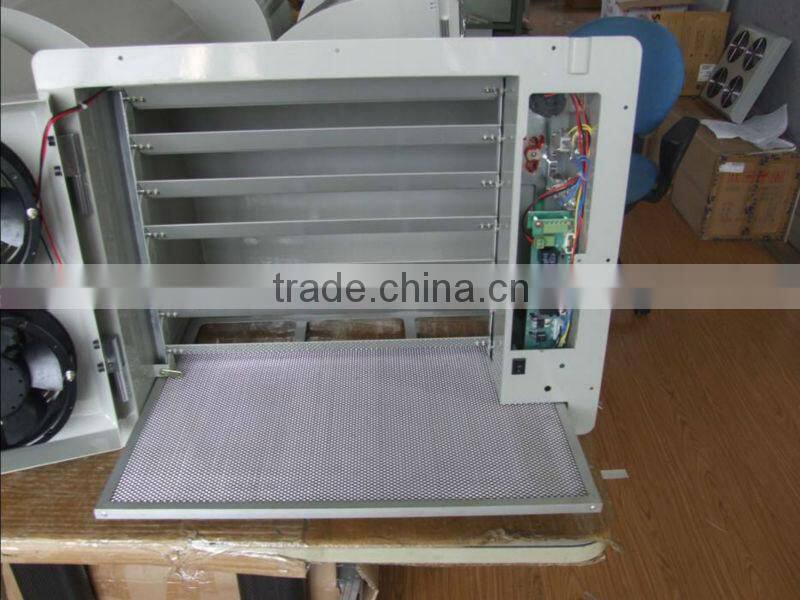

Inner side of the ventilation system

Backside of the ventilation system

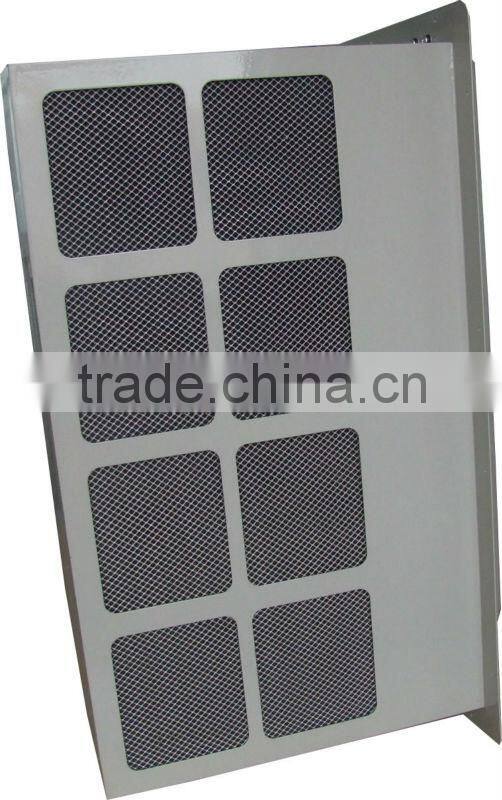

Filter screen of the air-intake unit

Side face of the ventilation system

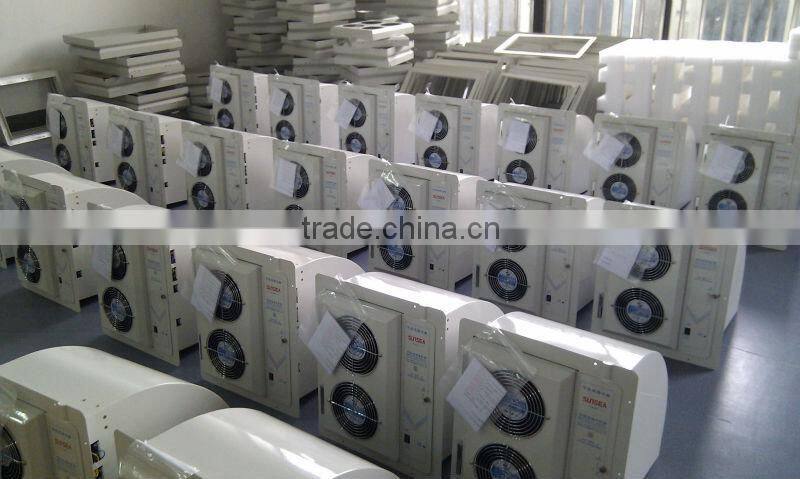

Finished products

Finished products 2

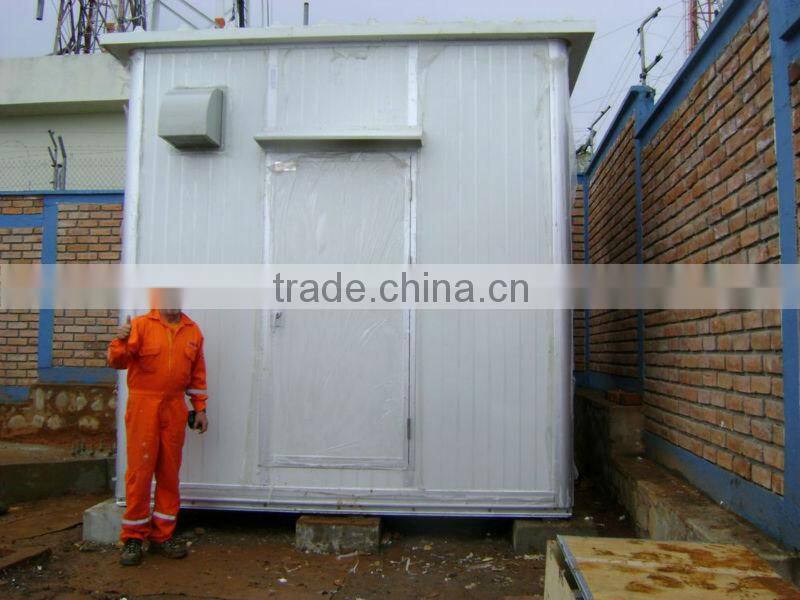

Ventilation system used on BTS

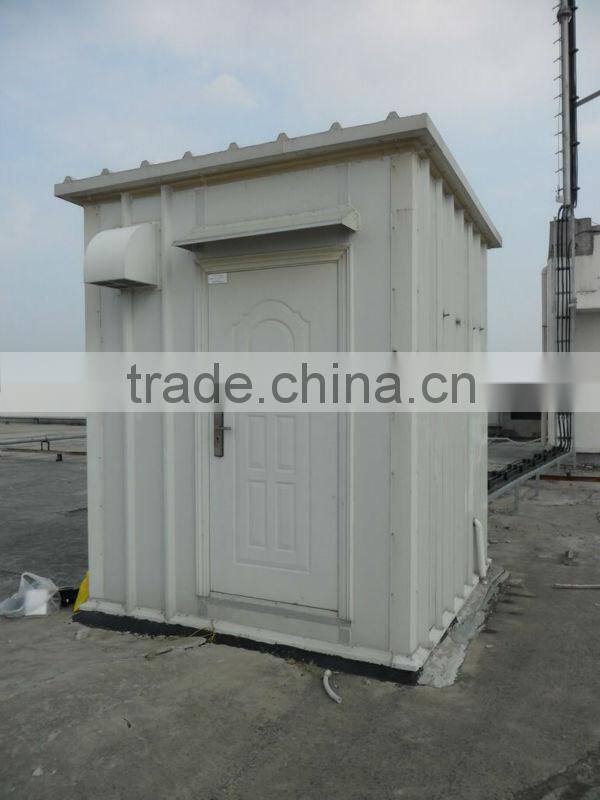

Ventalation system used on BTS 2
