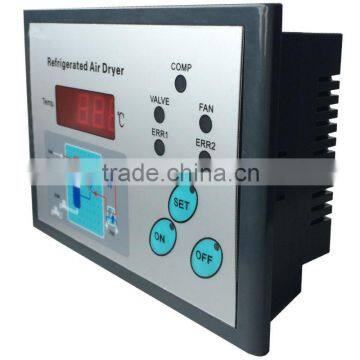

XJK-LG133 Simple controller for refrigerated air dryer

FOB Price

USD $30 - $35 / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Model Number	XJK-LG133
After-sales Service Provided	No overseas service provided

Feature:

1. adopt switch power supply technology to improve EMC

2. big output capacity for compressor

3. output alarm signal when temp is abnormal or sensor has fault or alarm signal is input.

4. alarm signal input: 3 channels (high temp., high pressure, overload)

Function:
Display	4 pcs of LED display temp., 5 indicated lights to display alarm and work status
Control	Control the work of compressor, fan and drain
Temp. detect	4 channels
Alarm signal input	3 channels N.C switch signal, for overload alarm, pressure abnormal alarm, high pressure alarm
output	5 channels, for compressor, drain, fan, alarm, work status
Size	167(W)x117(H)x55(D)mm
Install hole size	152x102mm

Technical parameter:
Rating voltage	AC 220V 50Hz
Display	4 pcs of nixie tube and 6 indicated lights
Output capacity for compressor	30A @ AC 220V, control 1-phase, lower then 2.2KW compressor.
Output capacity for fan and valve	2A @ AC 220V
Temp. detect range	0~99°C
Temp. accuracy	±1°C
Alarm input	3 channels of N.C switch signal
Connection	Plug-in unit

Packaging & Shipping

Packed in carton.

Deliver via EXPRESS or conforming on contract.

Our Services

offered OEM/ODM service
