XJZ-3S5 Compressed Air Dew Point Meter

Specifications

It contains a dew pint display, a ROTRONIC HC2-S dew point sensor.

Feature of Model HC2-S dew point sensor

1. Protection of probe: IP65
2. Output signal: DC 0-1V
3. Measurement range: -60 ~ 40°C
4. Maximum pressure: 2Mpa/20bara/290psi
5. Work ambient: -5~55°C/ 0~ 99%RH
6. Precision: ±1.0%RH, ±0.2°C(23±2°C)
7. Accuracy: ±2°C
8. Material of probe is 316L stainless steel
9. Interface of probe is G1/2'' (outer screw thread)
10. Max. cable length: 5m

Function of Model XJZ-3S5 dew point display

1. display dew point value
2. output alarm signal via relay (N.O dry contact) when dew point is abnormal
3. detect range is programmable
4. RS485 communication

Technical parameter of Model XJZ-3S5 dew point display

1. rating voltage: AC 220V
2. display: 3 pcs of 0.8’’ LED
3. installation method: panel-mounted
4. install hole size: 92x92mm
5. box size: 96x96x90mm

Parameter list table

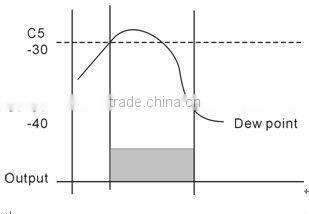

Output logic:

Connection diagram

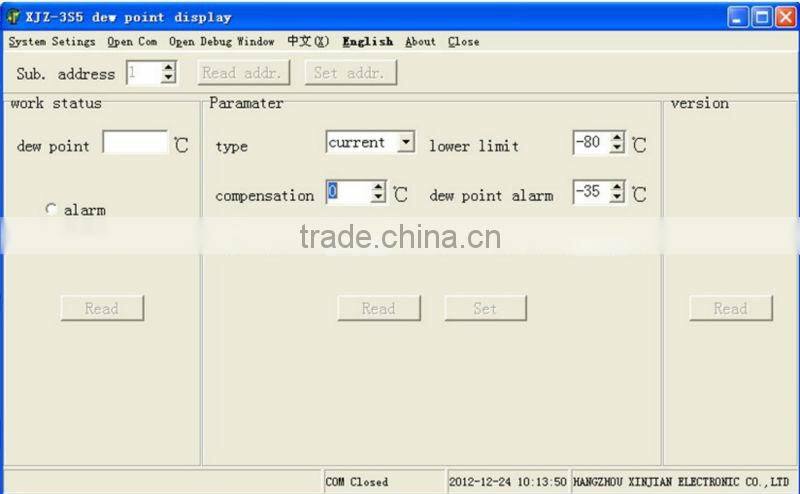

Monitor software window
