New Generation Sand Making Machine Manufacturer
- Shanghai
- T/T
You May Like
-
High Efficiency Sand Making Machine Manufacturer
-
Energy Saving Sand Making Machine Manufacturer
-
Complete Stone Crushing Product Line Supplier
-
Sand Making Machine Vertical Shaft Impact Crusher Price
-
High Efficiency Vertical Shaft Impact Crusher Price
-

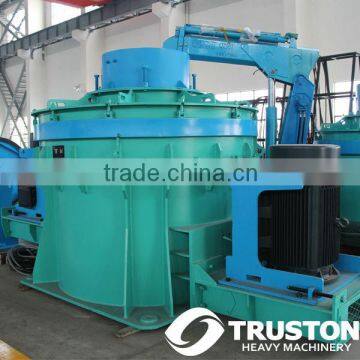

VSI Crusher Equipment, China Vertical Shafting Impact Crusher, Sand Making Machine CSCB-850
Product Details
Condition | New | Type | Impact Crusher | |
Application | Mine,Metallurgy,Building,Road for crushing | Motor Type | AC Motor | |
Power(W) | From(110-200)*2 KW to(200-250)*2KW | Capacity(t/h) | From 200 to 600 | |
Place of Origin | Shanghai, China | Brand Name | TRUSTON | |
Model Number | CSCB series | Dimension(L*W*H) | According to the model | |
Weight | 10950--13990 KG(excluding motor) | Certification | CE; ISO | |
Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Sand Making Machine Manufacturer1. western technology Chinese Price
2.high quality long serving life
3.low consumption
Specifications Of CSCB Series Vertical Shaft Impact Crusher-Sand Maker
1.Vertical Shaft Impact Crusher Specification
Model | Max Feed Size(mm) | Eccentric Shaft Speed(r/min) | Capacity(t/h) | Power(kw) | Weight(kg) |
CSCB-850 | 50 | 800-1800 | 200-350 | (110-200)x2 | 10950 |
CSCBF-850 | 50 | 800-1800 | 200-350 | (110-200)x2 | 13350 |
CSCBL-850 | 50 | 800-1800 | 250-400 | (110-200)x2 | 10980 |
CSCB-1000 | 63 | 800-1800 | 350-600 | (200-250)x2 | 13730 |
CSCBF-1000 | 63 | 800-1800 | 350-600 | (200-250)x2 | 16380 |
CSCBL-1000 | 63 | 800-1800 | 450-600 | (200-250)x2 | 13990 |
2.Main advantages of CSCB Series Vertical Shaft Impact Crusher
Convertible Crusher Design; Single or dual motor mount configuration; Oil lubrication system comprised of tank, pump, temperature switch, flow meter, oil cooler, oil heater and valve assembly Adjustable hopper ensures the best inlet amount; Cubic particles; High output and low power;
We offer two types vertical shaft impact crushers, CSCB series absorb German technology with Oil lubrication system, CPL series are grease lubrication system.
3.Vertical Shaft Impact Crusher appropriate for
Brittle hardness and grind materials such as ore, concrete, limestone, cobble, granite, metallurgy slag Secondary, tertiary and fine crushing stages or coarse grinding stage or shaped aggregate stage. Artificial sand making, concrete, beneficiation and grinding used in modern construction, irrigation works, building and mining industrials.
4.About Shanghai ChuangShen
Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
Based on the core value of “ Honesty, create value for ourselves; Responsibility, create value for customers”, we earnestly performs the ISO 9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA (China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded
