Home > Products > Sand Making Machine > VSI Crusher,CPL (ST)-850 Vertical Shaft Impact Crusher With Low Price High Efficience, Large River Rock Sand Making Machine

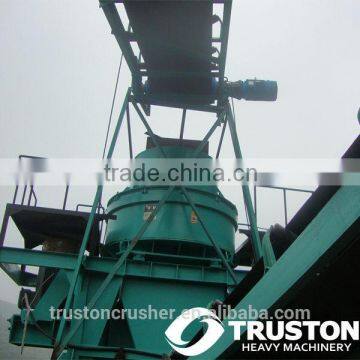

VSI Crusher,CPL (ST)-850 Vertical Shaft Impact Crusher With Low Price High Efficience, Large River Rock Sand Making Machine

FOB Price

US$ 10,000 - 1,000,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, sand maker, VSI crusher
Application	ore, concrete, limestone, cobble, granite, metallurgy slag Secondary	Motor Type	AC Motor
Power(W)	150-220	Capacity(t/h)	100-240
Place of Origin	Shanghai, China	Brand Name	TRUSTON
Model Number	CPL	Dimension(LWH)	Showing in the parameters
Weight	11680	Certification	ISO,CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

CPL (ST)-850 VSI crusher, sand making crusher
1.Simple structure,low cost;
2.High effiency and saving energy;
3.fine crush

VSI crusher,CPL (ST)-850Vertical Shaft Impact Crusher with Low Price High Efficience, Large River Rock Sand Making Machine -- TRUSTON

1. Vertical Shaft Impact Crusher Specification

Model	Max Feed Size(mm)	Eccentric Shaft Speed(r/min)	Capacity(t/h)	Power(kw)	Weight(kg)
CSCB-850	50	800-1800	200-350	(110-200)x2	10950
CSCBF-850	50	800-1800	200-350	(110-200)x2	13350
CSCBL-850	50	800-1800	250-400	(110-200)x2	10980
CSCB-1000	63	800-1800	350-600	(200-250)x2	13730
CSCBF-1000	63	800-1800	350-600	(200-250)x2	16380
CSCBL-1000	63	800-1800	450-600	(200-250)x2	13990
CPL(ST)-550	30	2258-2600	40-60	30-45	4730(5300)
CPL(ST)-700	35	1775-2050	80-100	55-90	7150(7750)
CPL(ST)-850	50	1460-1720	100-240	150-220	11680(12350)
CPL(ST)-1000	60	1240-1460	150-320	220-320	15800(17300)
CPL(ST)-1200	60	950-1220	200-500	320-500	20150(22500)

2. Large River Rocks Sand Making Crusher

Large river rocks sand making crusher also called sand making machines, are fine crusher styles based on the principle of impact and attrition. large river rocks sand making crusher are appropriate for various environments, especially for crushing brittle, hardness and grind materials. large river rocks sand making crusher give uniform product size which are the best available choice for artificial sand making of construction, irrigation works, building and mining industrials. Vertical shaft impact crushers would work safely many years as long as users check and maintain on time.

3. Large River Rocks Sand Making Crusher appropriate for

Brittle hardness and grind materials such as ore, concrete, limestone, cobble, granite, metallurgy slag Secondary, tertiary and fine crushing stages or coarse grinding stage or shaped aggregate stage. Artificial sand making, concrete, beneficiation and grinding used in modern construction, irrigation works, building and mining industrials.

4.Main Advantages of Large River Rocks Sand Making Crusher

Convertible Crusher Design; Single or dual motor mount configuration; Oil lubrication system comprised of tank, pump, temperature switch, flow meter, oil cooler, oil heater and valve assembly Adjustable hopper ensures the best inlet amount; Cubic particles; High output and low power;

We offer two types vertical shaft impact crushers, CSCB series absorb German technology with Oil lubrication system, CPL series are grease lubrication system.
